NSN 6640-00-191-6352
Part Details | LABORATORY SPATULA
6640-00-191-6352 A device consisting of a handle with a blade on one or both ends or with a blade on one end and a spoon on the other, made of porcelain, metal, or other material resistant to chemical attack. It is used to spread, mix, or convey powders or semi-solid materials. Excludes SPATULA.
Alternate Parts: 187801, 18780-1, V74030A, 6640-00-191-6352, 00-191-6352, 6640001916352, 001916352
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | MAR 09, 1970 | 00-191-6352 | 17490 ( SPATULA, LABORATORY ) |
REFERENCE DRAWINGS & PICTURES

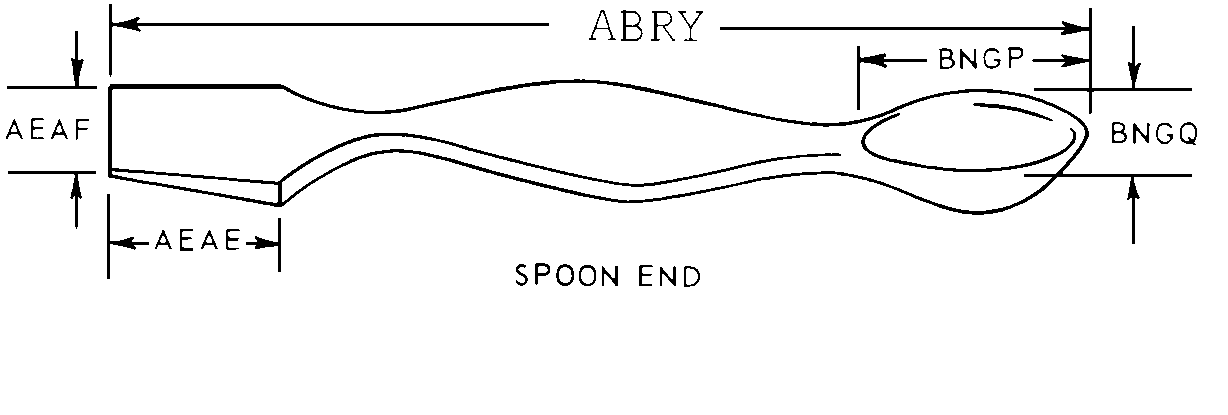

SPOON END
Cross Reference | NSN 6640-00-191-6352
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 18780-1 | 11273 | CENTRAL SCIENTIFIC COEDUCATIONAL |
| V74030A | 05963 | SHERWOOD MEDICAL CO |
Technical Data | NSN 6640-00-191-6352
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SPOON END |
| LENGTH | 125.0 MILLIMETERS NOMINAL |
| BLADE LENGTH | 50.000 MILLIMETERS NOMINAL |
| BLADE WIDTH | 12.000 MILLIMETERS NOMINAL |
| SPOON LENGTH | 30.000 MILLIMETERS NOMINAL |
| SPOON WIDTH | 15.000 MILLIMETERS NOMINAL |
| BLADE MATERIAL | STEEL, CORROSION RESISTING |
| HANDLE MATERIAL | STEEL, CORROSION RESISTING |
| SPOON MATERIAL | STEEL, CORROSION RESISTING |
| SPECIAL FEATURES | SIMULATED HORN TYPE W/TAPERED HANDLE |
