NSN 6625-00-071-8105
Part Details | RANGE INDICATOR METER
6625-00-071-8105 An electrically operated instrument which indicates scaler distance between a reference point and various other points.
Alternate Parts: 101783742, 10178374-2, 6625-00-071-8105, 00-071-8105, 6625000718105, 000718105
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JUL 20, 1967 | 00-071-8105 | 16482 ( METER, RANGE INDICATOR ) |
REFERENCE DRAWINGS & PICTURES

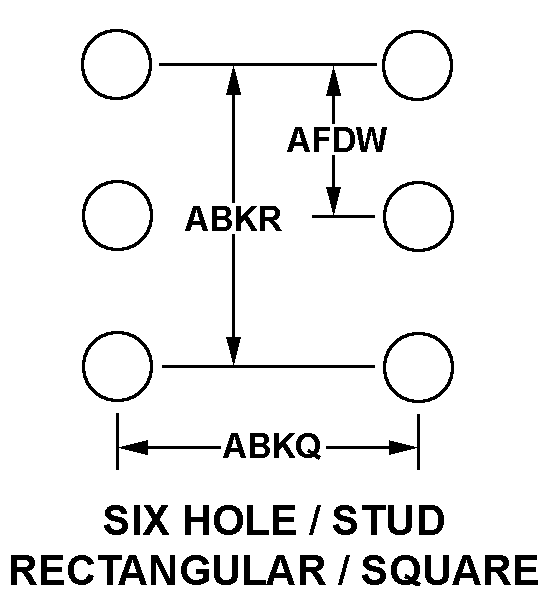

SIX HOLE/STUD RECTANGULAR/SQUARE
Cross Reference | NSN 6625-00-071-8105
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10178374-2 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 6625-00-071-8105
| Characteristic | Specifications |
|---|---|
| MOUNTING ARRANGEMENT STYLE | SIX HOLE/STUD RECTANGULAR/SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.015 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 2.500 INCHES NOMINAL |
| SHORTEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 1.250 INCHES NOMINAL |
