NSN 6515-00-389-7963
Part Details | COAGULATION ELECTRODE
6515-00-389-7963
Alternate Parts: 15L097, 6515-00-389-7963, 00-389-7963, 6515003897963, 003897963
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | JAN 01, 1963 | 00-389-7963 | 15327 ( ELECTRODE, COAGULATION ) |
REFERENCE DRAWINGS & PICTURES

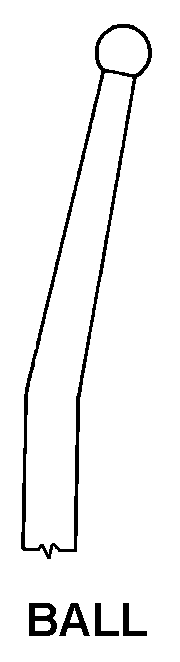

BALL
Cross Reference | NSN 6515-00-389-7963
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15L097 | 36109 | LIEBEL-FLARSHEIM COMPANY LLC |
Technical Data | NSN 6515-00-389-7963
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | PLASTIC SHANK SHEATH |
| UNIT TYPE | GENERAL |
| TIP END STYLE | BALL |
| POINT TYPE | BALL |
| OVERALL DIAMETER | 10.000 FRENCH NOMINAL |
| SHANK OVERALL LENGTH | 2.562 INCHES |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | ELECTRODE COAGULATION GENERAL D9 TIP BALL PT 10 FR 2.562" L |
