NSN 6515-00-385-9400
Part Details | SURGICAL DUODENAL TUBE
6515-00-385-9400 An elastic tube of small diameter approximately 4 feet to 10 feet (1200 millimeters to 3100 millimeters) long, with graduations. The inlet end may be funnel-shaped or designed to accommodate fittings. The outlet end may be closed (with side openings) or open to receive various perforated tips. It is used for gastric analysis, diagnosis, and treament; removal of duodenal contents; and treatment and diagnosis of obstructive lesions of the small intestine.
Alternate Parts: 0060280, 6515-00-385-9400, 00-385-9400, 6515003859400, 003859400
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | JAN 01, 1963 | 00-385-9400 | 13558 ( TUBE, DUODENAL, SURGICAL ) |
REFERENCE DRAWINGS & PICTURES

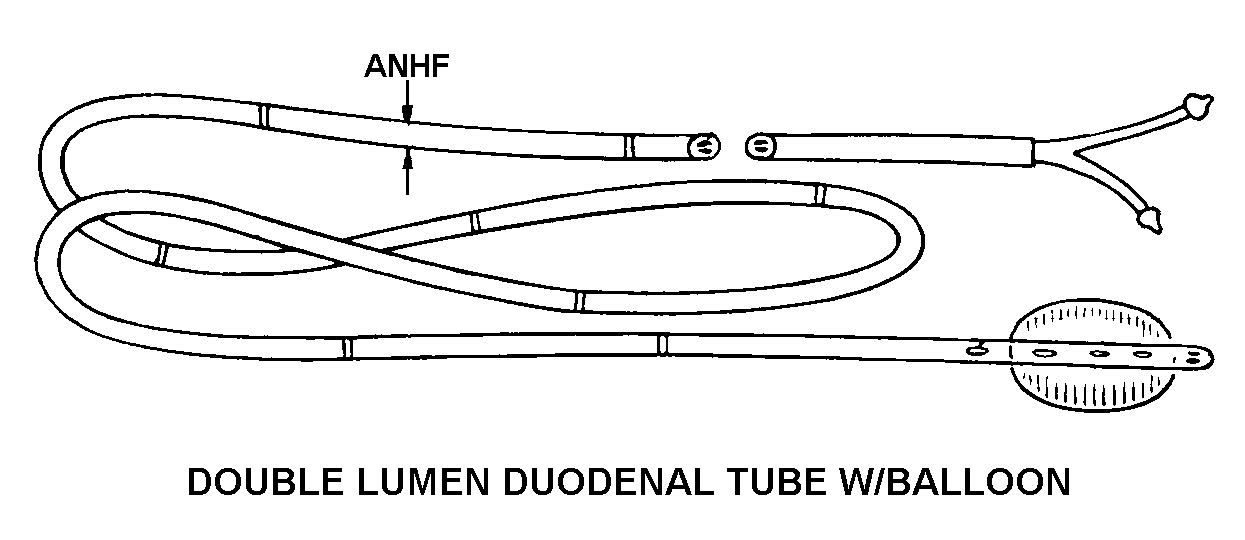

DOUBLE LUMEN DUODENTAL TUBE W/ BALLOON
Cross Reference | NSN 6515-00-385-9400
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0060280 | 13120 | C. R. BARD, INC. |
Technical Data | NSN 6515-00-385-9400
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | MILLER-ABBOTT |
| STYLE DESIGNATOR | DOUBLE LUMEN DUODENTAL TUBE W/ BALLOON |
| NOMINAL DIAMETER | 16.000 FRENCH |
| SHAFT EYE QUANTITY | 12 |
| LUMEN PASSAGE QUANTITY | 2 |
| INFLATION DEVICE | VALVE |
| TIP TYPE | ROUND |
| CONNECTOR TYPE | Y-CONNECTOR |
| CORE FABRICATION METHOD | NOT WOVEN |
| SPECIAL FEATURES | GRADUATED ASPIRATING TUBE WITH PERFORATED METAL TIP; CONTAINS TWO ADDITIONAL BALLOONS; UNIT QTY,10 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | TUBE DUODENAL SURGICAL MILLER-ABBOTT 16 FR E4 DBL LUMEN W/BALLOON |
