NSN 6515-00-342-7600
Part Details | NEEDLE INTRODUCER
6515-00-342-7600 A sharp-pointed, cannulated instrument, with a head or knob, used for initial puncture of the skin for the introduction of a finer, less rigid needle.
Alternate Parts: MILI36147, 6515-00-342-7600, 00-342-7600, 6515003427600, 003427600
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | JAN 01, 1963 | 00-342-7600 | 08440 ( INTRODUCER, NEEDLE ) |

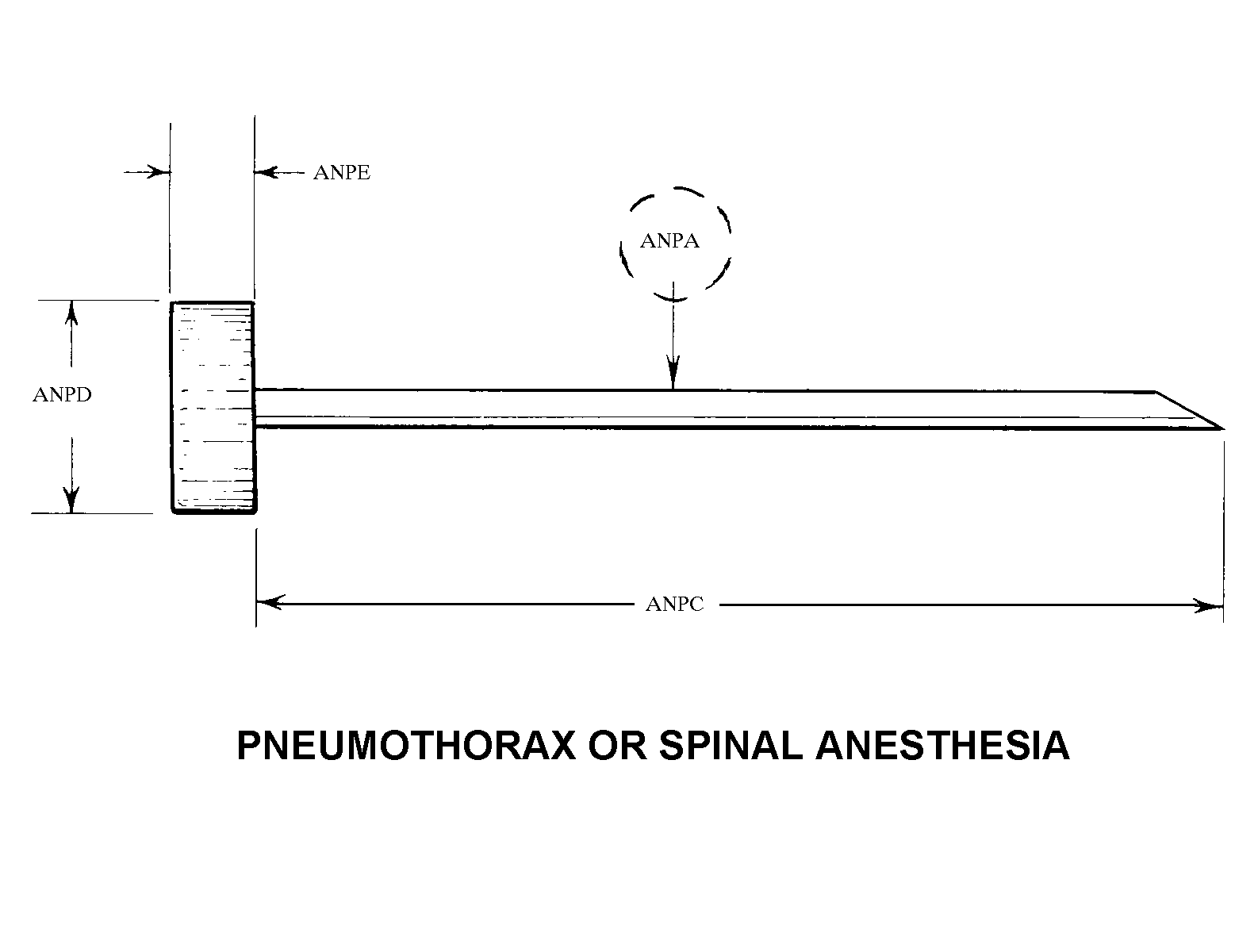

REFERENCE DRAWINGS & PICTURES
PNEUMOTHORAX OR SPINAL ANESTHESIA
Cross Reference | NSN 6515-00-342-7600
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILI36147 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 6515-00-342-7600
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A PNEUMOTHORAX OR SPINAL ANESTHESIA |
| CANNULA LENGTH | 1.688 INCHES MINIMUM AND 1.812 INCHES MAXIMUM |
| KNOB DIAMETER | 0.359 INCHES MINIMUM AND 0.391 INCHES MAXIMUM |
| KNOB THICKNESS | 0.125 INCHES MINIMUM AND 0.157 INCHES MAXIMUM |
| SURFACE TREATMENT AND LOCATION | INTRODUCER KNOB |
| NEEDLE CANNULA GAGE DESIGNATION AND LOCATION | 15 GAGE CANNULA |
| CANNULA WALL THICKNESS DESIGNATION | REGULAR |
| CANNULA BEVEL DESIGNATION | REGULAR |
| SPECIAL FEATURES | W/O FITTED STYLET |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BYSPECIAL FEATURES |
