NSN 6515-00-302-5225
Part Details | SPINAL ANESTHESIA CATHETER
6515-00-302-5225 An item primarily designed as a component of an ANESTHESIA SET, SPINAL which is left in position for continued anesthesia administration after the needle, which punctured the body, has been withdrawn. The item is designed for insertion into the puncture while inside the needle.
Alternate Parts: MILA16056, 6515-00-302-5225, 00-302-5225, 6515003025225, 003025225
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | JAN 01, 1963 | 00-302-5225 | 08476 ( CATHETER, SPINAL ANESTHESIA ) |
REFERENCE DRAWINGS & PICTURES

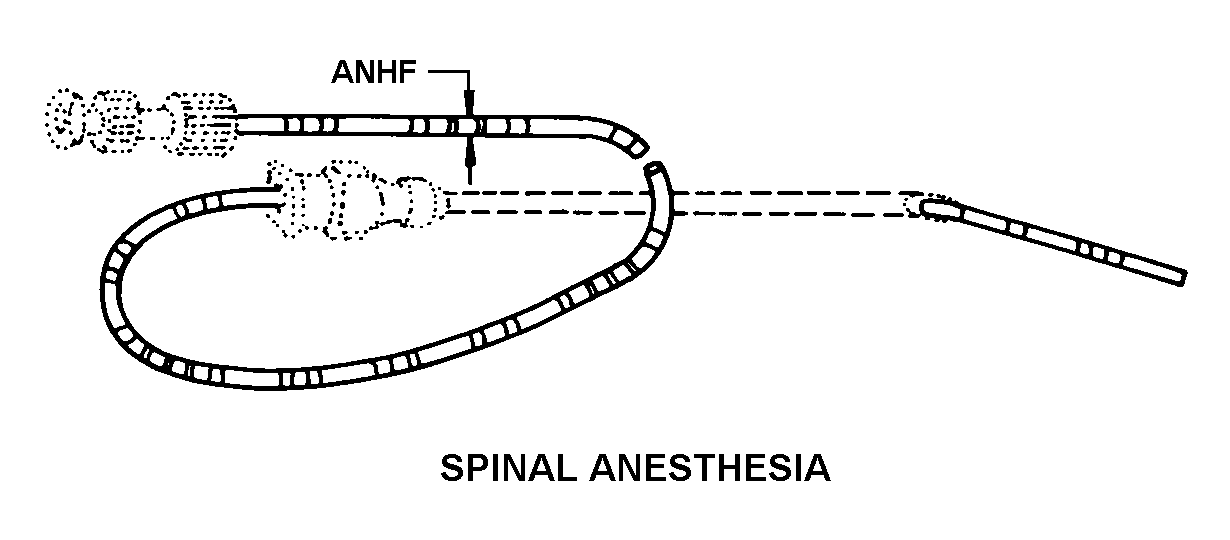

SPINAL ANESTHESIA
Cross Reference | NSN 6515-00-302-5225
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILA16056 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 6515-00-302-5225
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | TUOHY |
| STYLE DESIGNATOR | SPINAL ANESTHESIA |
| NOMINAL DIAMETER | 3.500 FRENCH |
| MATERIAL AND LOCATION | POLYAMIDE NYLON OVERALL |
| TIP TYPE | OPEN END |
| CORE FABRICATION METHOD | WOVEN |
| PATIENT SIZE DESIGNATION | ADULT |
| FEATURES PROVIDED | NONSTERILE AND REUSABLE AND X-RAY OPACITY AND STYLET |
| SPECIAL FEATURES | X-RAY; USED W/FOLLOWING ITEMS TO FORM A TUOHY SPINAL ANESTHESIA SET,ADAPTER,CATHETER TO SYRINGE,6515-00-300-0600; NEEDLE,6515-00-302-5250; FOLLOWING ITEMS MAY BE USED W/ABOVE SET; ADAPTER,NEEDLE TO TUBING,6515-00-300-0500,ADAPTER,SYRINGE TO TUBING,65-00-300-0720,STOPCOCK,6515-00-374-4760 |
