NSN 6515-00-140-7999

Part Details | SURGICAL DRAINAGE TUBE

6515-00-140-7999 A tubular item without an anchoring feature. It may have graduations or markings and is used for insertion into an incision or wound to permit drainage. For items inserted into incisions or wounds having anchoring or positioning features, see DRAIN, SURGICAL.

Alternate Parts: 8888571059, MILD36589, 571059, 8888571059, 57159, 6515-00-140-7999, 00-140-7999, 6515001407999, 001407999

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
65SEP 10, 197100-140-799913696 ( TUBE, DRAINAGE, SURGICAL )
REFERENCE DRAWINGS & PICTURES

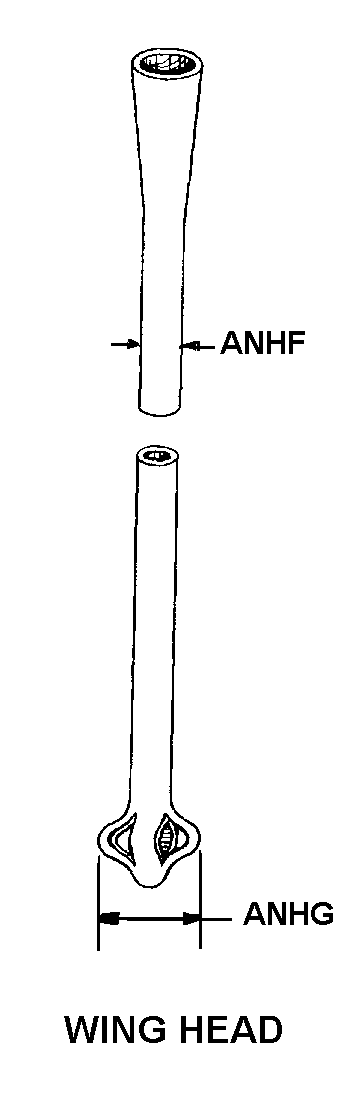

WING HEAD

TUBE,DRAINAGE,SURGI | 6515-00-140-7999, 001407999
Cross Reference | NSN 6515-00-140-7999
Part Number Cage Code Manufacturer
88885710590GVV9GERMFREE LABORATORIES INCORPORATEDDBA GERMFREE
MILD3658981349MILITARY SPECIFICATIONSPROMULGATED BY MILITARY
57105905963SHERWOOD MEDICAL CO
88885710590BW57SHERWOOD MEDICAL CO
571590BW57SHERWOOD MEDICAL CO
Technical Data | NSN 6515-00-140-7999
Characteristic Specifications
DESIGN DESIGNATION THORACIC
STYLE DESIGNATOR9 WING HEAD
NOMINAL DIAMETER32.000 FRENCH
MATERIAL AND LOCATION PLASTIC, POLYVINYL CHLORIDE OVERALL
SHAFT EYE QUANTITY5
TIP TYPE OPEN END
CORE FABRICATION METHOD NOT WOVEN
SPECIAL FEATURESRIGHT ANGLE; TRANSPARENT; IN WATERPROOF CONTAINER; FOR DRAINAGE AFTER CHEST SURGERY; 20 IN. (50.80 CM) LONG; UNIT QTY,10
NONDEFINITIVE SPEC/STD DATAI TYPE AND 2 SIZE
PART NAME ASSIGNED BY CONTROLLING AGENCYTUBE DRAINAGE SURG THORACIC 32 FR C19 ANGLE TRANSPARENT PLAS 10S
