NSN 6515-00-138-2809
Part Details | BONE SCREW SCREWDRIVER
6515-00-138-2809 An item used for the insertion and removal of bone screws during orthopedic surgical procedures. It is compatible for use with the DRILL, ORTHOPEDIC, SURGICAL.
Alternate Parts: 89004, 890-04, 89004, 890-04, 6515-00-138-2809, 00-138-2809, 6515001382809, 001382809
Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
---|---|---|---|
65 | JUL 30, 1971 | 00-138-2809 | 07286 ( SCREWDRIVER, BONE SCREW ) |
REFERENCE DRAWINGS & PICTURES

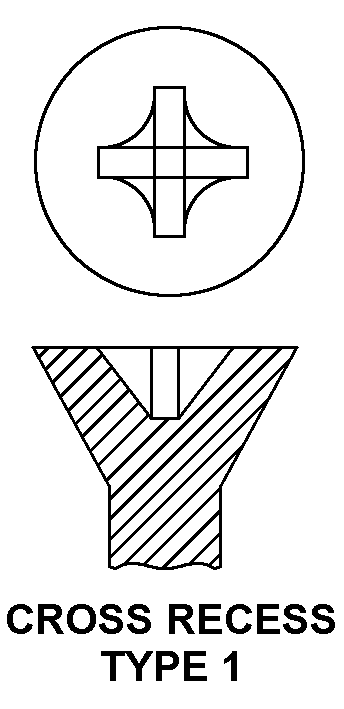

CROSS RECESS TYPE 1
Cross Reference | NSN 6515-00-138-2809
Part Number | Cage Code | Manufacturer |
---|---|---|
890-04 | 0CMX1 | DEPUY INC |
890-04 | 0B4P6 | ZIMMER INC |
Technical Data | NSN 6515-00-138-2809
Characteristic | Specifications |
---|---|
OVERALL LENGTH | 10.000 INCHES MINIMUM AND 10.500 INCHES MAXIMUM |
BLADE DRIVE END STYLE | 1 CROSS RECESS TYPE 1 |
GUIDE PIN | NOT PROVIDED |
SCREW HOLDER TYPE | SLOTTED |
SPECIAL FEATURES | CRUCIATE-SLOT HEAD |
PART NAME ASSIGNED BY CONTROLLING AGENCY | SCREWDRIVER BONE SCREW 10-10.50" LG CRUCIATE-SLOT HEAD CRS |
