NSN 6515-00-057-2133
Part Details | TRACHEAL CATHETER
6515-00-057-2133 An item with an open tip and connector end or funnel end designed to be inserted into the trachea by way of the nasal or oral passages for endotracheal intubation.
Alternate Parts: 1761, 6515-00-057-2133, 00-057-2133, 6515000572133, 000572133
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | JAN 01, 1961 | 00-057-2133 | 08477 ( CATHETER, TRACHEAL ) |

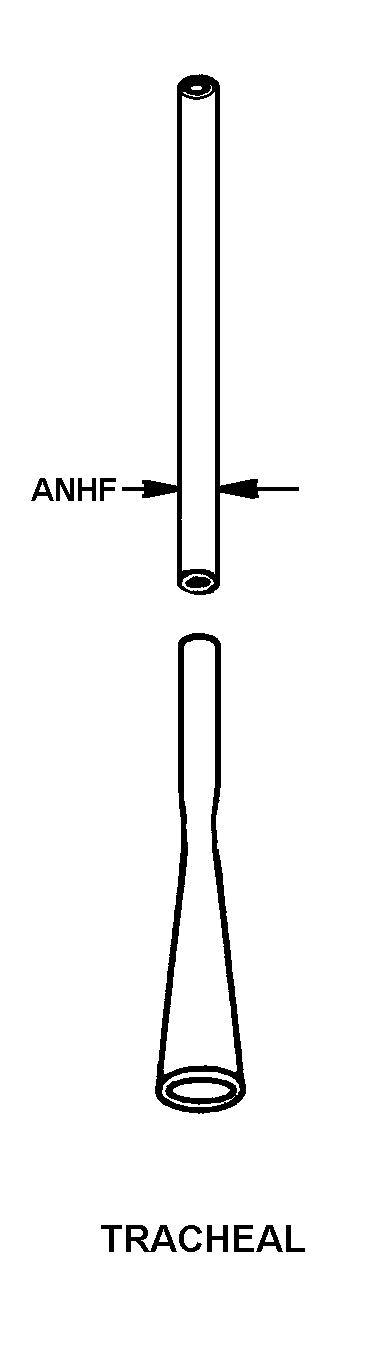

REFERENCE DRAWINGS & PICTURES
TRACHEAL
Cross Reference | NSN 6515-00-057-2133
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1761 | 13120 | C. R. BARD, INC. |
Technical Data | NSN 6515-00-057-2133
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | ENDOTRACHEAL |
| STYLE DESIGNATOR | TRACHEAL |
| NOMINAL DIAMETER | 10.000 FRENCH |
| MATERIAL AND LOCATION | PLASTIC BODY AND POLYAMIDE NYLON CONNECTOR |
| SHAFT EYE QUANTITY | 1 |
| TIP TYPE | WHISTLE |
| CORE FABRICATION METHOD | NOT WOVEN |
| PATIENT SIZE DESIGNATION | ADULT |
| FEATURES PROVIDED | NONSTERILE AND REUSABLE |
| SPECIAL FEATURES | W/ CONNECTOR |
