NSN 6515-00-042-3850
Part Details | URINARY DRAINAGE CONNECTING TUBE
6515-00-042-3850 A tube with a connector at one end to fit urethral retention catheters. The other end may or may not have a slip-on or screw-on type bottle connection. For use as a connecting tube between retention catheters and drainage receptacle.
Alternate Parts: 017513, 3606, 6515-00-042-3850, 00-042-3850, 6515000423850, 000423850
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | JAN 01, 1961 | 00-042-3850 | 58186 ( TUBE, CONNECTING, URINARY DRAINAGE ) |
REFERENCE DRAWINGS & PICTURES

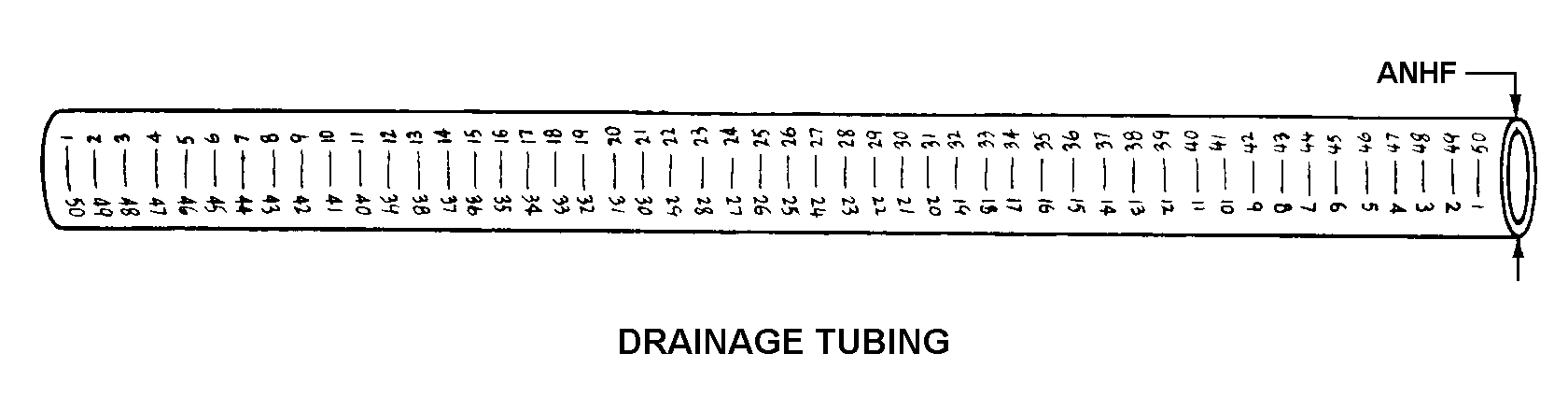

DRAINAGE TUBING
Cross Reference | NSN 6515-00-042-3850
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 017513 | 13120 | C. R. BARD, INC. |
| 3606 | 71855 | DAVOL INC. |
Technical Data | NSN 6515-00-042-3850
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | PEZZER |
| STYLE DESIGNATOR | DRAINAGE TUBING |
| NOMINAL DIAMETER | 0.281 INCHES |
| MATERIAL AND LOCATION | PLASTIC CONNECTOR AND PLASTIC BODY AND RUBBER, NATURAL CAP |
| PROXIMAL END FUNNEL QUANTITY | 1 |
| TIP TYPE | OPEN END |
| CORE FABRICATION METHOD | NOT WOVEN |
| SPECIAL FEATURES | TRANSPARENT,ADAPTER CAP WITH VENT HOLES,9/32 IN. (0.71 CM) ID; USE AS A CONNECTING TUBE BETWEEN A URETHRAL CATHETER AND A DRAINAGE BOTTLE; UNIT QTY,50; INDIVIDUALLY SEALY PLASTIC ENVELOPE; DESTRUCTION AFTER 60 MONTHS |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | TUBE CONNECTING URINARY DRAINAGE PEZZER E3 PLAS DISP 9/32 IN 50S |
