NSN 6515-00-016-8282
Part Details | INTRAVENOUS CATHETER AND NEEDLE UNIT
6515-00-016-8282 An item consisting of a cannulated needle with an intravenous catheter, and it may contain additional components, such as a hypodermic syringe, needle guard, flow control plug, and the like. The catheter is inserted into the vein by way of the needle's puncture, and is left in position for continued intravenous administration after the needle is withdrawn. A syringe, when supplied, is used to better control insertion of the catheter needle unit or for blood aspiration.
Alternate Parts: 6515-00-016-8282, 00-016-8282, 6515000168282, 000168282
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | JAN 01, 1961 | 00-016-8282 | 29491 ( CATHETER AND NEEDLE UNIT, INTRAVENOUS ) |
REFERENCE DRAWINGS & PICTURES

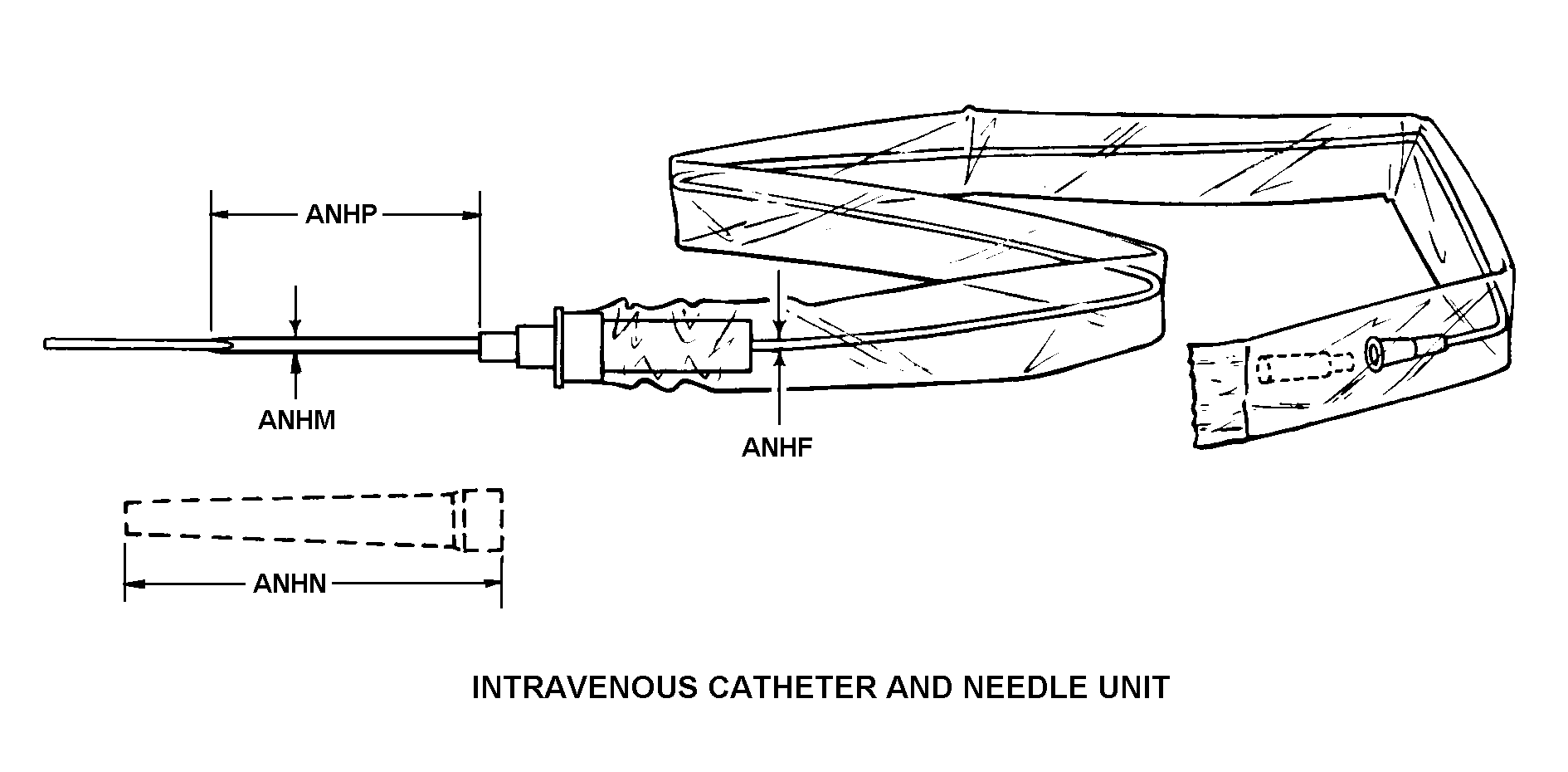

INTRAVENOUS CATHETER AND NEEDLE UNIT
Cross Reference | NSN 6515-00-016-8282
| Part Number | Cage Code | Manufacturer |
|---|
Technical Data | NSN 6515-00-016-8282
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | INTRAVENOUS |
| STYLE DESIGNATOR | INTRAVENOUS CATHETER AND NEEDLE UNIT |
| NOMINAL DIAMETER | 16.000 GAGE |
| NEEDLE NOMINAL DIAMETER | 14.000 GAGE |
| NEEDLE NOMINAL LENGTH | 2.000 INCHES |
| TIP TYPE | OPEN END |
| CONNECTOR TYPE | SLIP HUB |
| CORE FABRICATION METHOD | NOT WOVEN |
| SPECIAL FEATURES | BEVEL POSITION INDICATOR,12 IN.L |
