NSN 6320-01-280-5091
Part Details | SHIP'S ENGINE ORDER INDICATOR
6320-01-280-5091 An instrument that displays in visual form the forward or reverse position of a ships propulsion engine and the ships speed range. Excludes INDICATOR, POSITION.
Alternate Parts: IC7UB421A, IC/7UB42-1A, IC7UB421A, IC/7UB42-1A, 101735 TY1, 10-1735 TY1, 6320-01-280-5091, 01-280-5091, 6320012805091, 012805091
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 63 | JUN 11, 1988 | 01-280-5091 | 31805 ( INDICATOR, SHIP'S ENGINE ORDER ) |
REFERENCE DRAWINGS & PICTURES

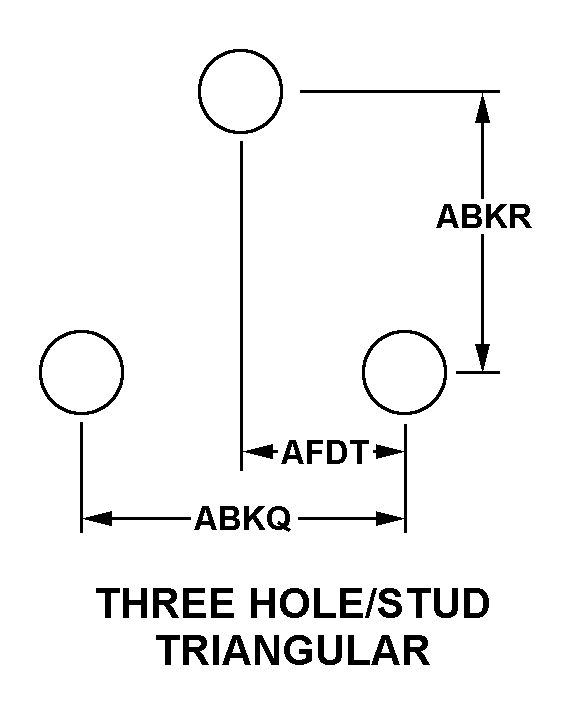

THREE HOLE/STUD TRIANGULAR
Cross Reference | NSN 6320-01-280-5091
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| IC/7UB42-1A | 73152 | HENSCHEL C B MFG CO |
| IC/7UB42-1A | 28199 | L3 TECHNOLOGIES, INC.DBA L3 HENSCHEL |
| 10-1735 TY1 | 28199 | L3 TECHNOLOGIES, INC.DBA L3 HENSCHEL |
Technical Data | NSN 6320-01-280-5091
| Characteristic | Specifications |
|---|---|
| USAGE DESIGN | VERTICAL SPEED AND SHIP SPEED |
| CASE MATERIAL | ALUMINUM |
| ELECTRICAL CONNECTION QUANTITY | 2 |
| PRESENTATION TYPE | WINDOW |
| CURRENT TYPE | AC |
| AC VOLTAGE RATING | 115.0 VOLTS MAXIMUM |
| PHASE | SINGLE |
| FREQUENCY RATING | 60.0 HERTZ MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.266 INCHES MAXIMUM |
| MOUNTING ARRANGEMENT STYLE | THREE HOLE/STUD TRIANGULAR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 7.000 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 9.250 INCHES MAXIMUM |
| SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 3.500 INCHES MAXIMUM |
| LENGTH | 11.000 INCHES MAXIMUM |
| WIDTH | 6.000 INCHES MAXIMUM |
| HEIGHT | 8.125 INCHES MAXIMUM |
| SPECIAL FEATURES | FULL,STOP,STAND,BACK,AHEAD,FLANK,1/3,2/3 |
