NSN 6240-00-069-2640
Part Details | INCANDESCENT LAMP
6240-00-069-2640 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 193, WL111, 193, 193, 6240-00-069-2640, 00-069-2640, 6240000692640, 000692640
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JUL 13, 1967 | 00-069-2640 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

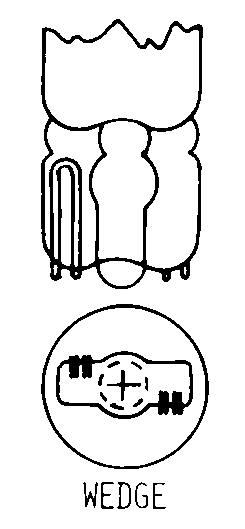

WEDGE
T (TUBULAR)
Cross Reference | NSN 6240-00-069-2640
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 193 | 94988 | COOPER INDUSTRIES INCCHAMPION AVIATION PRODUCTS |
| WL111 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 193 | 08108 | LAMP INDUSTRYFOR USE WITH INDUSTRY |
| 193 | 62607 | PHILIPS ELECTRONICS NORTH AMERICACORPORATION |
Technical Data | NSN 6240-00-069-2640
| Characteristic | Specifications |
|---|---|
| BASE STYLE | WEDGE |
| BULB STYLE | T (TUBULAR) |
| BULB DESIGNATOR | T-3 1/4 |
| OVERALL LENGTH | 1.062 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILAMENT DESIGNATION | C-2F |
| WATTAGE RATING | 4.620 WATTS |
| VOLTAGE RATING | 14.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.330 AMPERES NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 5000.0 |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| LIGHT CENTER LENGTH | 0.562 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 08108-193 MANUFACTURERS STANDARD |
