NSN 6240-00-068-5542
Part Details | INCANDESCENT LAMP
6240-00-068-5542 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: WL50, 45461, 4546-1, 45461, 4546-1, 6240-00-068-5542, 00-068-5542, 6240000685542, 000685542
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JUL 11, 1967 | 00-068-5542 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

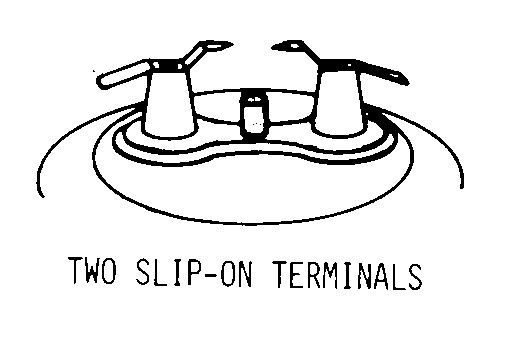

TWO SLIP-ON TERMINALS
A (ARBITRARY DESIGNATION)
Cross Reference | NSN 6240-00-068-5542
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WL50 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 4546-1 | 08806 | GENERAL ELECTRIC COMINIATURE LAMP PRODUCTS DEPT |
| 4546-1 | 08108 | LAMP INDUSTRYFOR USE WITH INDUSTRY |
Technical Data | NSN 6240-00-068-5542
| Characteristic | Specifications |
|---|---|
| BASE STYLE | TWO SLIP-ON TERMINALS |
| BULB STYLE | 7 A (ARBITRARY DESIGNATION) |
| BULB DESIGNATOR | PAR-36 |
| OVERALL LENGTH | 2.750 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| LIGHT INTENSITY DISTRIBUTION FEATURE | PARABOLIC REFLECTOR |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILAMENT DESIGNATION | C-2R |
| WATTAGE RATING | 2.350 WATTS |
| VOLTAGE RATING | 4.700 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.500 AMPERES NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 100.0 |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| FEATURES PROVIDED | HEAT RESISTANT GLASS |
| SPECIAL FEATURES | CLEAR ARIA AT BACK OF REFLECTOR |
| SPECIFICATION/STANDARD DATA | 08108-4546-1 MANUFACTURERS STANDARD |
