NSN 6240-00-068-5228
Part Details | FLASHTUBE LAMP
6240-00-068-5228 A lamp that produces repeated light flashes of exceedingly high intensity for short durations. May include incandescent lamp within itself.
Alternate Parts: FXG146C, FT230A, 133101, 13/3101, 6240-00-068-5228, 00-068-5228, 6240000685228, 000685228
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JUL 13, 1967 | 00-068-5228 | 03314 ( LAMP, FLASHTUBE ) |
REFERENCE DRAWINGS & PICTURES

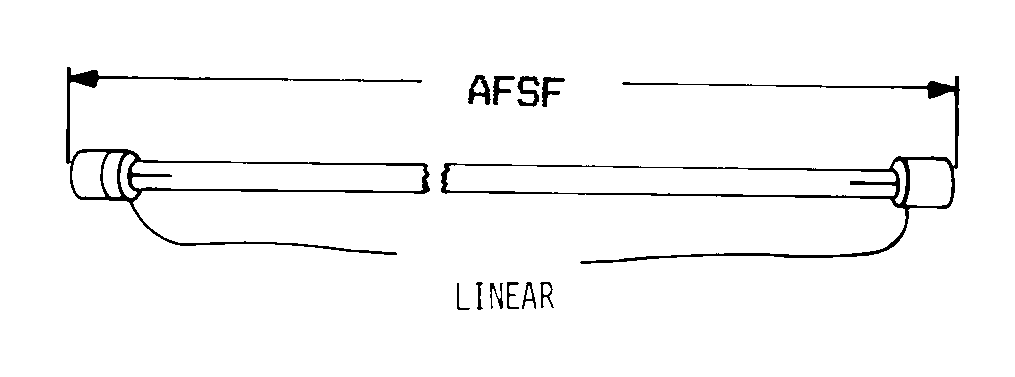

LINEAR
MINI-CAN
Cross Reference | NSN 6240-00-068-5228
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FXG146C | 92678 | EG AND G INC |
| FT230A | 08807 | GENERAL ELECTRIC COPHOTO LAMP DEPT |
| 13/3101 | 0LSY7 | IMPULSE PHYSICS USA INC |
Technical Data | NSN 6240-00-068-5228
| Characteristic | Specifications |
|---|---|
| BASE STYLE | 6 MINI-CAN |
| WIRE LEAD LENGTH | 1.000 INCHES NOMINAL |
| FLASHTUBE STYLE | LINEAR |
| FLASHTUBE OVERALL LENGTH | 6.625 INCHES NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | BLUE |
| FILLING GAS TYPE | ARGON |
| VOLTAGE RATING | 2000.000 VOLTS NOMINAL |
| INPUT RATING IN WATT-SECONDS | 200.0 |
| MAXIMUM FLASHING RATE PER SECOND | 2 |
| FEATURES PROVIDED | WATERPROOF TERMINALS |
