NSN 6240-00-064-9970
Part Details | INCANDESCENT LAMP
6240-00-064-9970 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 1003003X, 100/3003X, 100300120V, 100-300-120V, 100300W120V, 100/300/W120V, 6240-00-064-9970, 00-064-9970, 6240000649970, 000649970
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JUN 27, 1967 | 00-064-9970 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

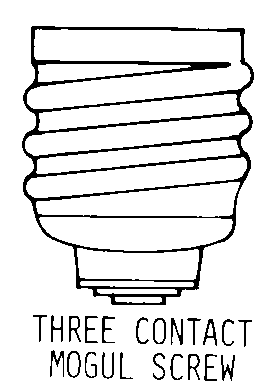

THREE CONTACT MOGUL SCREW
A (ARBITRARY DESIGNATION)
Cross Reference | NSN 6240-00-064-9970
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100/3003X | 56589 | 21ST CENTURY ENTERPRISES INC |
| 100-300-120V | 08805 | GENERAL ELECTRIC COMPANYDBA GE |
| 100/300/W120V | 62607 | PHILIPS ELECTRONICS NORTH AMERICACORPORATION |
Technical Data | NSN 6240-00-064-9970
| Characteristic | Specifications |
|---|---|
| BASE STYLE | THREE CONTACT MOGUL SCREW |
| BULB STYLE | 9 A (ARBITRARY DESIGNATION) |
| BULB DESIGNATOR | PS-25 |
| OVERALL LENGTH | 6.688 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILAMENT DESIGNATION | C-2R,CC-8 |
| WATTAGE RATING | 100.000 WATTS AND 200.000 WATTS AND 300.000 WATTS |
| VOLTAGE RATING | 120.000 VOLTS NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 1200.0 |
| BURNING POSITION | HORIZONTAL |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
