NSN 6240-00-063-6392
Part Details | INCANDESCENT LAMP
6240-00-063-6392 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: A811524, A8115-24, ML8115, ML8115, 6240-00-063-6392, 00-063-6392, 6240000636392, 000636392
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-063-6392 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

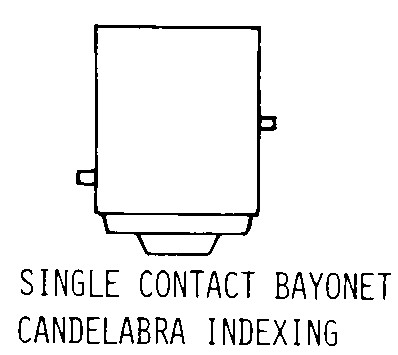

SINGLE CONTACT BAYONET CANDELABRA INDEXING
A (ARBITRARY DESIGNATION)
Cross Reference | NSN 6240-00-063-6392
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A8115-24 | 72914 | GRIMES AEROSPACE COMPANYDBA HONEYWELL |
| ML8115 | 61951 | MICRO LAMPS INC. |
| ML8115 | 58774 | WAMCO, INC. |
Technical Data | NSN 6240-00-063-6392
| Characteristic | Specifications |
|---|---|
| BASE STYLE | SINGLE CONTACT BAYONET CANDELABRA INDEXING |
| BULB STYLE | 2 A (ARBITRARY DESIGNATION) |
| BULB DESIGNATOR | GG-12A1 |
| OVERALL LENGTH | 2.275 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| LIGHT INTENSITY DISTRIBUTION FEATURE | REFLECTIVE BOWL |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILAMENT DESIGNATION | CC-6 |
| WATTAGE RATING | 20.000 WATTS |
| VOLTAGE RATING | 28.000 VOLTS NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 300.0 |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
