NSN 6240-00-055-1511
Part Details | INCANDESCENT LAMP
6240-00-055-1511 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 495545063, 49554-506-3, 6240-00-055-1511, 00-055-1511, 6240000551511, 000551511
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1961 | 00-055-1511 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

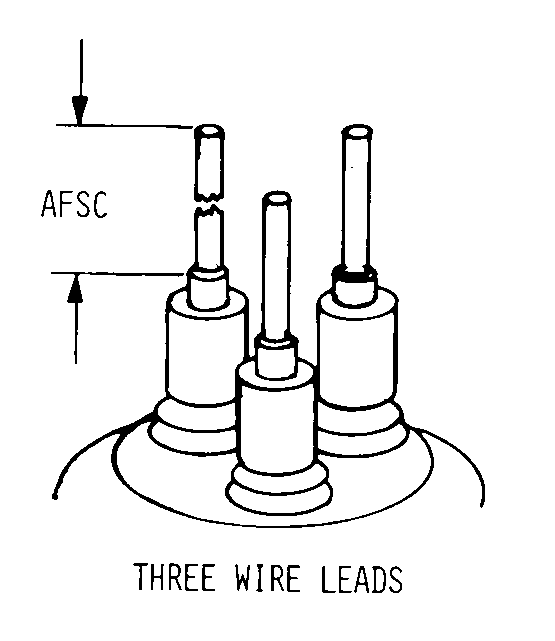

THREE WIRE LEADS
T (TUBULAR)
Cross Reference | NSN 6240-00-055-1511
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 49554-506-3 | 94756 | BOEING COMPANY, THEDBA BOEING |
Technical Data | NSN 6240-00-055-1511
| Characteristic | Specifications |
|---|---|
| BASE STYLE | THREE WIRE LEADS |
| BULB STYLE | T (TUBULAR) |
| BULB DESIGNATOR | T-11/4 |
| OVERALL LENGTH | 0.460 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | GREEN |
| FILAMENT DESIGNATION | C-2F |
| CURRENT RATING FOR WHICH DESIGNED | 0.040 AMPERES NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 1000.0 |
| BURNING POSITION | |
| FEATURES PROVIDED | HEAT RESISTANT GLASS |
