NSN 6220-00-118-2386
Part Details | NAVIGATIONAL LIGHT CONTROL
6220-00-118-2386 A device which determines the mode of operation of navigational lights or light systems.
Alternate Parts: SYM9891, SYM989-1, 9891, 989-1, 9000S6402F74270SYM9891, 9000S6402F74270SYM989-1, 6220-00-118-2386, 00-118-2386, 6220001182386, 001182386
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | OCT 16, 1968 | 00-118-2386 | 00930 ( CONTROL, NAVIGATIONAL LIGHT ) |

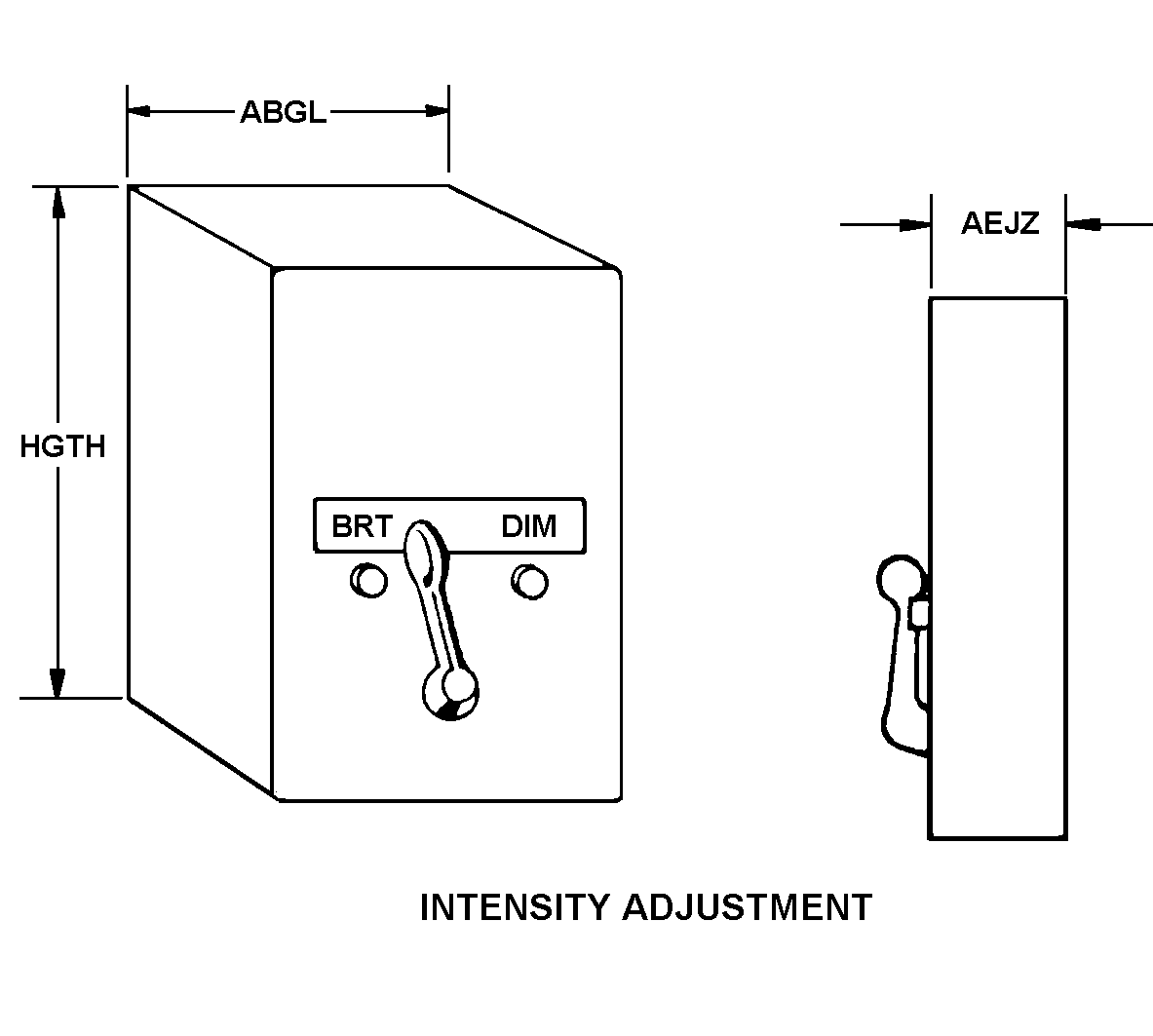

REFERENCE DRAWINGS & PICTURES
INTENSITY ADJUSTMENT
Cross Reference | NSN 6220-00-118-2386
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SYM989-1 | 03950 | NAVAL INVENTORY CONTROL POINTMECHANICSBURG |
| 989-1 | 03950 | NAVAL INVENTORY CONTROL POINTMECHANICSBURG |
| 9000S6402F74270SYM989-1 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 6220-00-118-2386
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | INTENSITY ADJUSTMENT |
| WIDTH | 10.500 INCHES NOMINAL |
| DEPTH | 4.000 INCHES NOMINAL |
| HEIGHT | 14.156 INCHES NOMINAL |
| INCLOSURE MATERIAL | STEEL |
| INCLOSURE SURFACE TREATMENT | ENAMEL |
| OPERATING FUNCTION AND METHOD | ACTUATION LEVER AND DEACTUATION LEVER |
| FUNCTIONING SIGNAL METHOD | INDICATOR LIGHTS |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| USAGE DESIGN | OUTDOOR |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 UNTHREADED HOLE |
