NSN 6220-00-013-9523
Part Details | AUTOMOTIVE DIRECTIONAL SIGNAL LIGHT CONTROL
6220-00-013-9523 An item which, when manually actuated, completes, interrupts, or changes the connections in the electrical circuit to control the operation of the directional signal lights on an automotive vehicle. It may include flasher mechanism.
Alternate Parts: 8700302, 87-00-302, 28600304, 286-00-304, 2854, 285-4, 44034, 1DL3, 64906CX, 1DL3, 64906CX, 97970, 6220-00-013-9523, 00-013-9523, 6220000139523, 000139523
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | MAY 03, 1968 | 00-013-9523 | 06106 ( CONTROL, DIRECTIONAL SIGNAL LIGHT, AUTOMOTIVE ) |
REFERENCE DRAWINGS & PICTURES

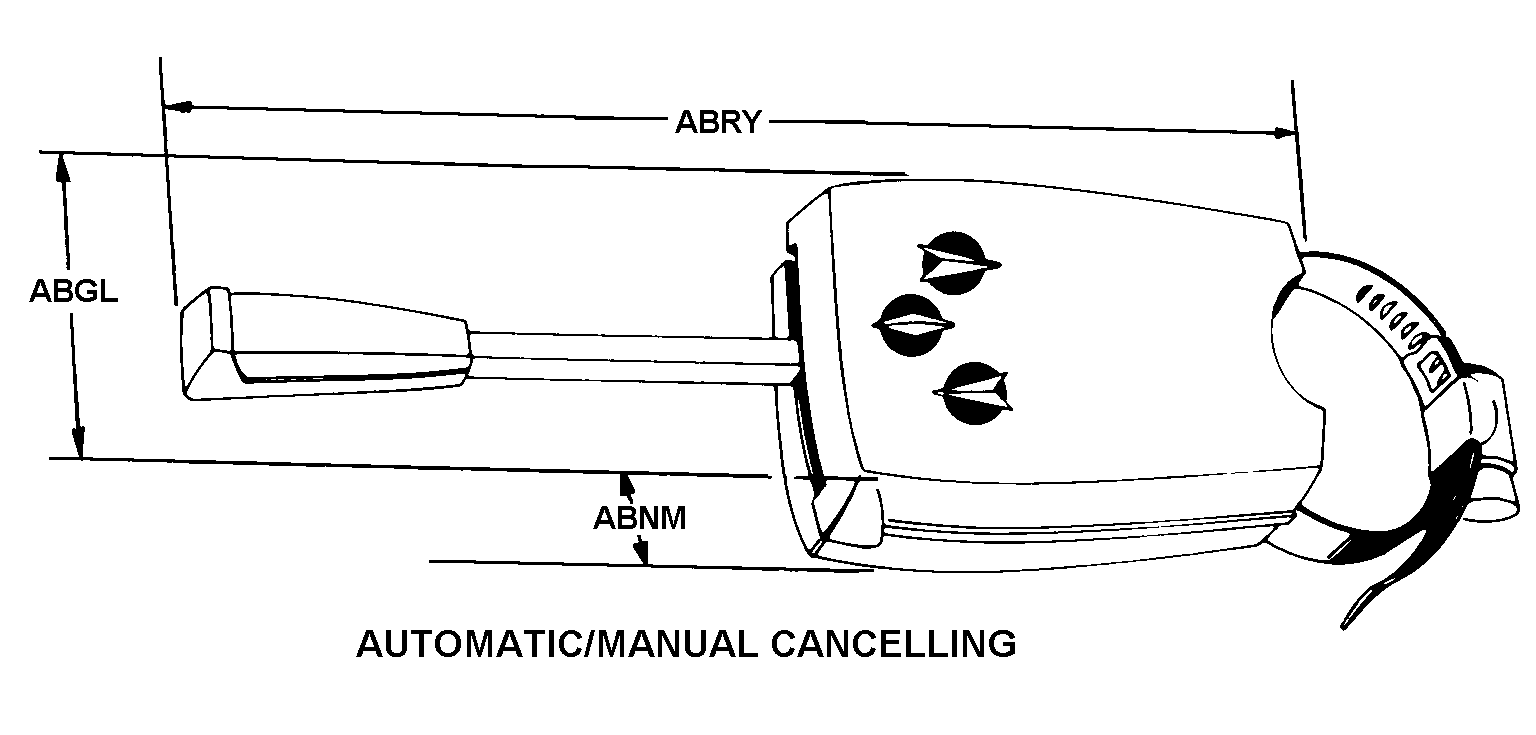

AUTOMATIC/MANUAL CANCELLING
Cross Reference | NSN 6220-00-013-9523
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 87-00-302 | 20984 | ARROW SAFETY DEVICE CO |
| 286-00-304 | 20984 | ARROW SAFETY DEVICE CO |
| 285-4 | 20984 | ARROW SAFETY DEVICE CO |
| 44034 | 81834 | GROTE INDUSTRIES, INC.DIV MILITARY PRODUCTS |
| 1DL3 | 45152 | OSHKOSH CORPORATION |
| 64906CX | 45152 | OSHKOSH CORPORATION |
| 1DL3 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 64906CX | 75Q65 | OSHKOSH DEFENSE, LLC |
| 97970 | 13548 | TRUCK-LITE CO., INC.DBA SIGNAL STAT PRODUCT LINE |
Technical Data | NSN 6220-00-013-9523
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | AUTOMATIC/MANUAL CANCELLING |
| WIDTH | 2.000 INCHES NOMINAL |
| THICKNESS | 2.000 INCHES NOMINAL |
| LENGTH | 7.000 INCHES NOMINAL |
| INCLOSURE MATERIAL | ZINC |
| INCLOSURE SURFACE TREATMENT | CHROMATE |
| OPERATING FUNCTION AND METHOD | ACTUATION SWITCH |
| FUNCTIONING SIGNAL METHOD | DIAL INDICATOR |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 6.0 DC AND 12.0 DC |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED HOLE |
