NSN 6210-00-052-3218
Part Details | ELECTRIC LIGHT GLOBE
6210-00-052-3218 An item of clear or diffusing material which incloses the light source and is specifically designed to be used with a FIXTURE, LIGHTING or other general illumination device, such as LIGHT, FLOOR and LIGHT, DESK.
Alternate Parts: 5516, 6210-00-052-3218, 00-052-3218, 6210000523218, 000523218
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-052-3218 | 11119 ( GLOBE, ELECTRIC LIGHT ) |
REFERENCE DRAWINGS & PICTURES

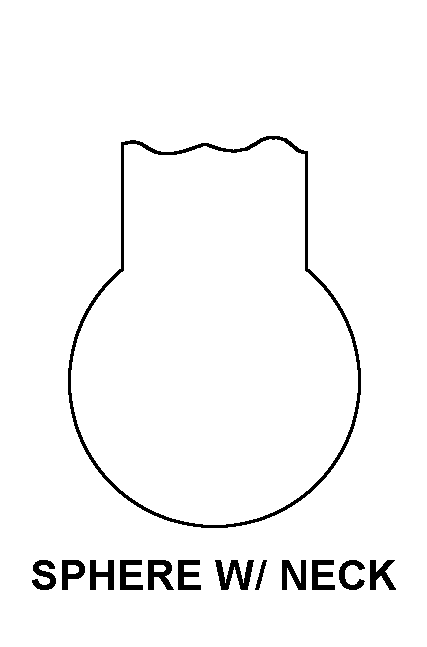

SPHERE W/NECK
Cross Reference | NSN 6210-00-052-3218
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5516 | 10706 | PERFECLITE CO |
Technical Data | NSN 6210-00-052-3218
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS |
| HIGH STRESS GLASS | NOT INCLUDED |
| COLOR | WHITE |
| OUTER SURFACE CONDITION | J ANY ACCEPTABLE |
| INSIDE SURFACE CONDITION | J ANY ACCEPTABLE |
| MATERIAL TRANSPARENCY | TRANSLUCENT |
| OVERALL DIAMETER | 12.000 INCHES NOMINAL |
| OVERALL HEIGHT | 6.250 INCHES NOMINAL |
| MOUNTING METHOD | GROOVE |
| GROOVE DEPTH | 0.250 INCHES NOMINAL |
| STYLE DESIGNATOR | 0 SPHERE W/NECK |
