Part Details | LIGHT LENS
6210-00-045-5492 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).
Alternate Parts: 9541CXP30952, 9541CXP30-952, 85112, 85-112, 6515149B12, 65-15149B12, TA362GD, LC15GD3, LC15GD, MILL366116, MIL-L-3661/16, MILL366115, MIL-L-3661/15, LC15GN3, LC15GN, 6515149B12, 65-15149B12, 415073023, 4150730-23, 415073017, 4150730-17, 4150730023, 4150730-023, 4150730017, 4150730-017, 6210-00-045-5492, 00-045-5492, 6210000455492, 000455492
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1961 | 00-045-5492 | 29939 ( LENS, LIGHT ) |
REFERENCE DRAWINGS & PICTURES

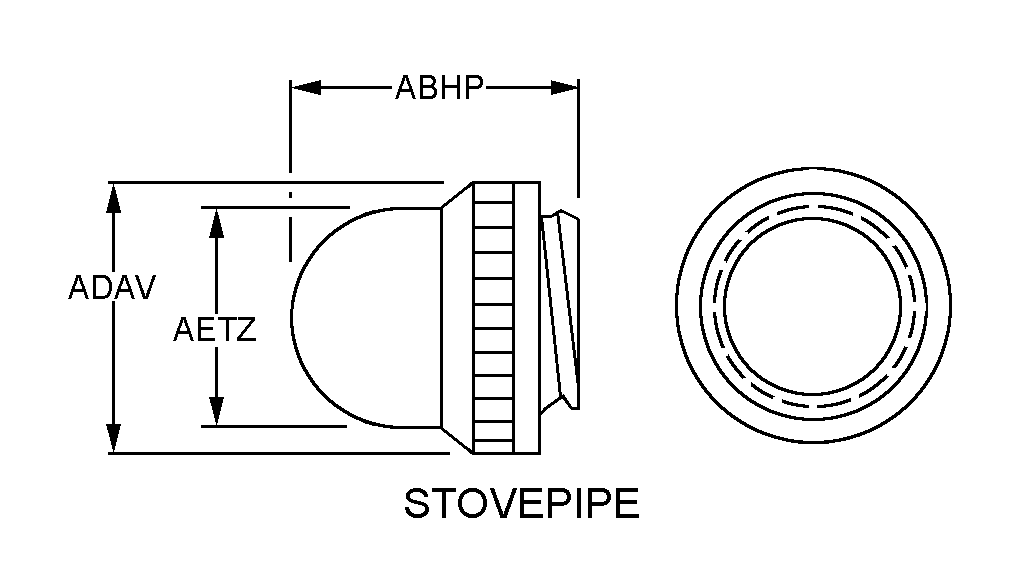

STOVEPIPE
Cross Reference | NSN 6210-00-045-5492
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9541CXP30-952 | 83330 | DIALIGHT CORPORATION |
| 85-112 | 83330 | DIALIGHT CORPORATION |
| 65-15149B12 | 1VPW8 | GENERAL DYNAMICS MISSION SYSTEMS,INC |
| TA362GD | 07294 | GENISCO FILTER CORP. |
| LC15GD3 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| LC15GD | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-L-3661/16 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-L-3661/15 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| LC15GN3 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| LC15GN | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 65-15149B12 | 94990 | MOTOROLA INC.DBA INTEGRATED INFORMATION SYSTEMS |
| 4150730-23 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
| 4150730-17 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
| 4150730-023 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
| 4150730-017 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 6210-00-045-5492
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STOVEPIPE |
| OVERALL LENGTH | 0.840 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.720 INCHES MINIMUM AND 0.780 INCHES MAXIMUM |
| EFFECTIVE DIAMETER | 0.630 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| MOUNTING METHOD | EXTERNAL THREAD |
| MOUNTING DEVICE QUANTITY | 1 |
| THREAD SERIES | UNS |
| THREAD DIAMETER | 0.562 INCHES |
| THREAD QUANTITY | 27 PER INCH |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| FURNISHED ITEMS | GASKET |
