NSN 6210-00-023-3738
Part Details | INDICATOR LIGHT
6210-00-023-3738 A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. Must include or provide for the use of a lens as a part of it. For items without a lens, see LAMPHOLDER, and also see LIGHT (1), PANEL.
Alternate Parts: LH50LC14GN, LH501LC14GN3, LH50/1-LC14GN3, MILL3661, MIL-L-3661, 6210-00-023-3738, 00-023-3738, 6210000233738, 000233738
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-023-3738 | 00160 ( LIGHT, INDICATOR ) |
REFERENCE DRAWINGS & PICTURES

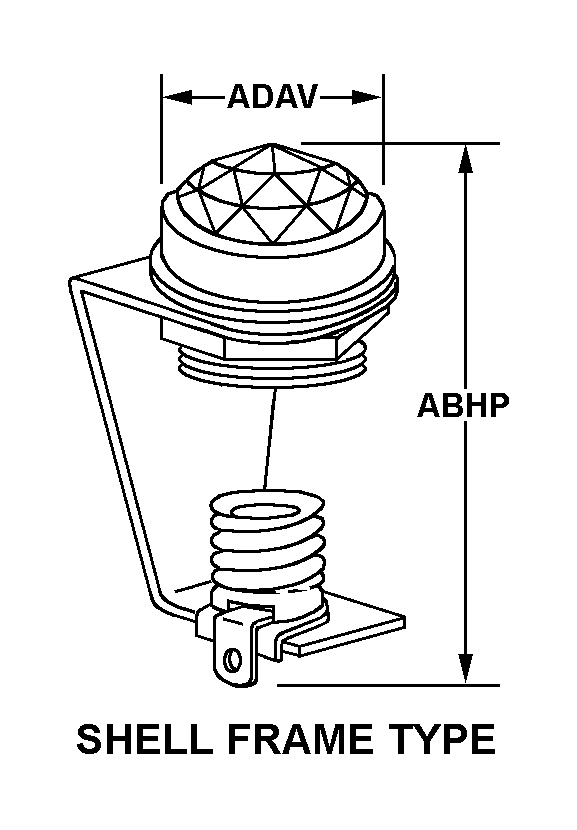

SHELL FRAME TYPE
Cross Reference | NSN 6210-00-023-3738
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LH50LC14GN | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| LH50/1-LC14GN3 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-L-3661 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 6210-00-023-3738
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SHELL FRAME TYPE |
| OVERALL LENGTH | 2.095 INCHES NOMINAL |
| OVERALL DIAMETER | 0.906 INCHES NOMINAL |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LAMP BULB SIZE DESIGNATOR | T-3 1/4 |
| LAMP BASE TYPE ACCOMMODATED | MINIATURE BAYONET |
| LENS QUANTITY | 1 |
| LENS MOUNTING METHOD | SCREW IN |
| MOUNTING METHOD | PANEL |
| PANEL ACCOMMODATION HOLE DIAMETER | 0.688 INCHES MINIMUM AND 0.694 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 2 SOLDER LUG |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DRIPPROOF AND VIBRATION RESISTANT |
| FURNISHED ITEMS AND QUANTITY | 1 GASKET AND 1 HEXAGON NUT AND 1 LOCK WASHER |
