NSN 6210-00-022-7981
Part Details | LIGHT LENS
6210-00-022-7981 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).
Alternate Parts: 1610111203, 161-0111-203, 6210000227981, MILL366137, MIL-L-3661/37, LC37RD2, 6210-00-022-7981, 00-022-7981, 6210000227981, 000227981
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | APR 07, 1972 | 00-022-7981 | 29939 ( LENS, LIGHT ) |
REFERENCE DRAWINGS & PICTURES

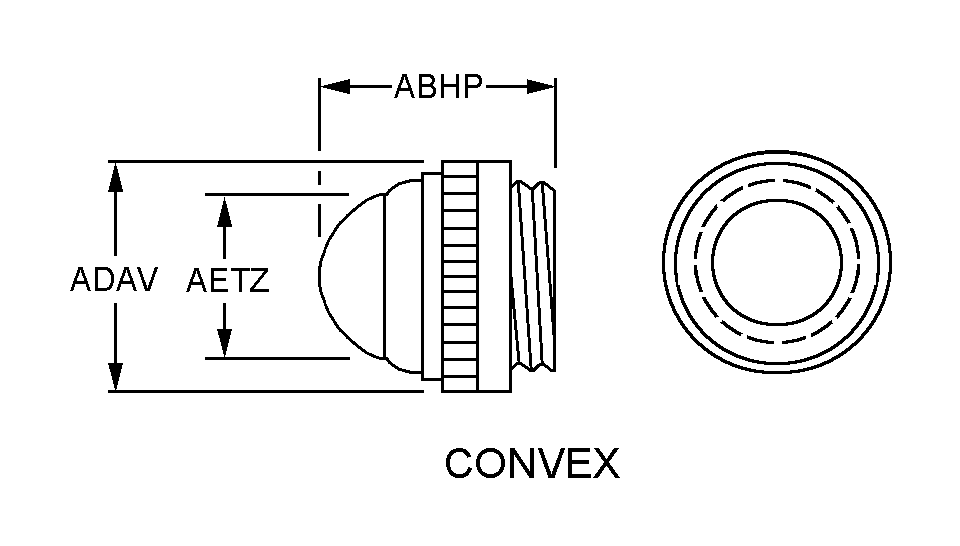

CONVEX
Cross Reference | NSN 6210-00-022-7981
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 161-0111-203 | 83330 | DIALIGHT CORPORATION |
| 6210000227981 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| MIL-L-3661/37 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| LC37RD2 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 6210-00-022-7981
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CONVEX |
| OVERALL LENGTH | 0.818 INCHES MINIMUM AND 0.870 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.610 INCHES MINIMUM AND 0.670 INCHES MAXIMUM |
| EFFECTIVE DIAMETER | 0.300 INCHES MINIMUM AND 0.360 INCHES MAXIMUM |
| MOUNTING METHOD | EXTERNAL THREAD |
| MOUNTING DEVICE QUANTITY | 1 |
| THREAD SERIES | UNEF |
| THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY | 32 PER INCH |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| DIMMING DEVICE TYPE | MECHANICAL SHUTTER |
| FURNISHED ITEMS | O-RING |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT |
