NSN 6160-00-402-2078
Part Details | BATTERY RETAINER
6160-00-402-2078 An item designed to position and/or restrain the movement of one or more batteries in their normal mounting position. See also TRAY, BATTERY and BATTERY BOX.
Alternate Parts: 13211E7535, 6160-00-402-2078, 00-402-2078, 6160004022078, 004022078
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | APR 03, 1970 | 00-402-2078 | 02890 ( RETAINER, BATTERY ) |
REFERENCE DRAWINGS & PICTURES

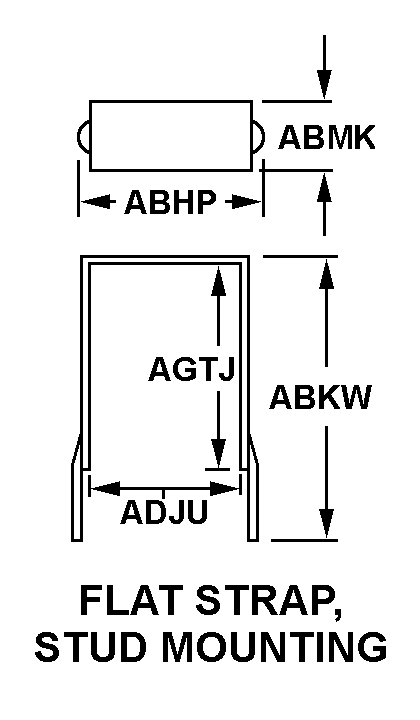

FLAT STRAP, STUD MOUNTING
Cross Reference | NSN 6160-00-402-2078
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13211E7535 | 97403 | CECOM LR CENTER |
Technical Data | NSN 6160-00-402-2078
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PAINT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-T-704 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | FLAT STRAP, STUD MOUNTING |
| OVERALL LENGTH | 10.562 INCHES MINIMUM AND 10.625 INCHES MAXIMUM |
| OVERALL HEIGHT | 11.312 INCHES MINIMUM AND 11.375 INCHES MAXIMUM |
