NSN 6060-01-627-1566
Part Details | FIBER OPTIC RECEPTACLE CONNECTOR
6060-01-627-1566 A fiber optic fitting with or without contact(s) constructed to be affixed to a fiber optic cable to join with another fiber optic connector(s) and is designed to be mounted on a bulkhead, wall, chassis, panel, or PRINTED WIRING BOARD. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, RECEPTACLE, ELECTRICAL; LAMPHOLDER; JACK, TELEPHONE; SOCKET (as modified); DUMMY CONNECTOR, RECEPTACLE; JACK ASSEMBLY, TIP; and PLUG ASSEMBLY, TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified).
Alternate Parts: M288764B11S1, M28876/4B11S1, MILPRF288764, MIL-PRF-28876/4, 6060-01-627-1566, 01-627-1566, 6060016271566, 016271566
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | APR 03, 2014 | 01-627-1566 | 33907 ( CONNECTOR, RECEPTACLE, FIBER OPTIC ) |
REFERENCE DRAWINGS & PICTURES

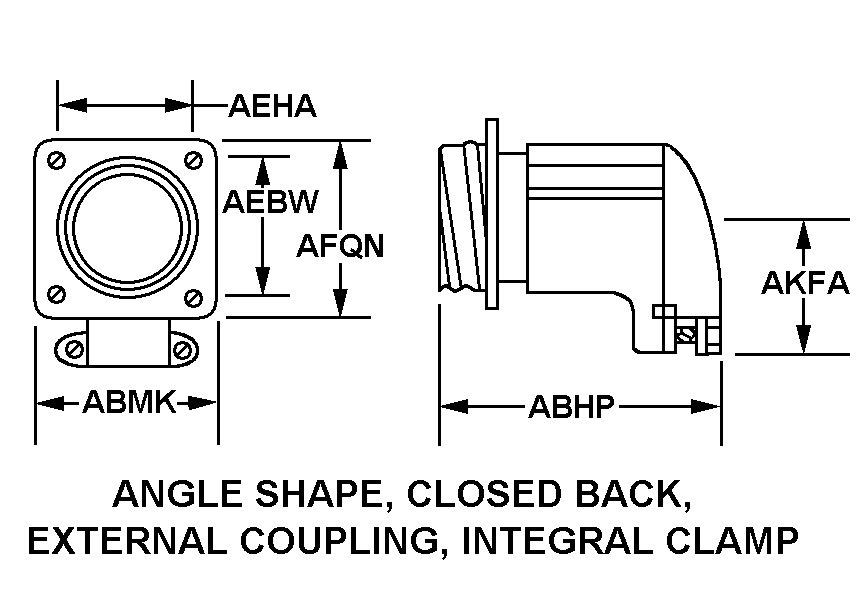

ANGLE SHAPE, CLOSED BACK, EXTERNAL COUPLING, INTEGRAL CLAMP
Cross Reference | NSN 6060-01-627-1566
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M28876/4B11S1 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-PRF-28876/4 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 6060-01-627-1566
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ANGLE SHAPE, CLOSED BACK, EXTERNAL COUPLING, INTEGRAL CLAMP |
| OVERALL LENGTH | 4.250 INCHES MAXIMUM |
| OVERALL WIDTH | 1.116 INCHES MINIMUM AND 1.158 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.843 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.843 INCHES NOMINAL |
| FLANGE LENGTH | 1.116 INCHES MINIMUM AND 1.158 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO CABLE END | 3.708 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | SPECIAL ACME |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP W/TELESCOPING BUSHING |
| CABLE ENTRANCE DIAMETER | 0.346 INCHES NOMINAL |
| MATING END QUANTITY | 1 |
