NSN 6060-01-611-2386
Part Details | FIBER OPTIC PLUG CONNECTOR
6060-01-611-2386 A fiber optic fitting with or without contact(s) constructed to be affixed to the end of a fiber optic cable for convenience in joining with another fiber optic connector(s), and is not designed to be mounted on a bulkhead, chassis, or panel. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, PLUG, ELECTRICAL; PLUG, TIP; DUMMY PLUG, TELEPHONE; DUMMY CONNECTOR, PLUG; INSERT, ELECTRICAL CONNECTOR; SOCKET, PLUG-IN ELECTRONIC COMPONENTS; JACK ASSEMBLY, TIP; PLUG ASSEMBLY TIP; and JACK TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified).
Alternate Parts: 863934223, 86393-4223, 05A308WC8PN, 6060-01-611-2386, 01-611-2386, 6060016112386, 016112386
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | SEP 10, 2012 | 01-611-2386 | 33906 ( CONNECTOR, PLUG, FIBER OPTIC ) |

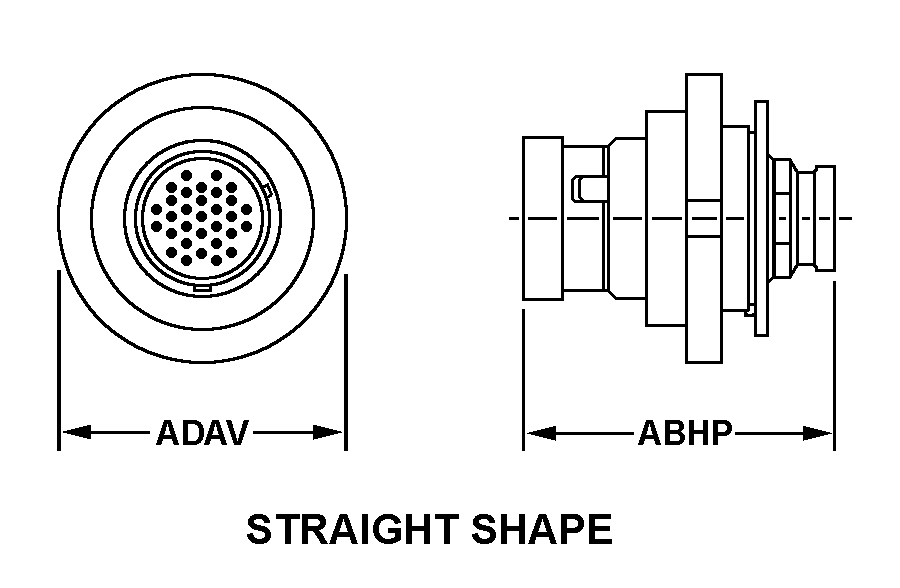

REFERENCE DRAWINGS & PICTURES
STRAIGHT SHAPE
Cross Reference | NSN 6060-01-611-2386
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 86393-4223 | 1UX99 | MOLEX INCORPORATEDDIV MOLEX CONNECTOR CORPORATION |
| 05A308WC8PN | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN AEROSPACE |
Technical Data | NSN 6060-01-611-2386
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE |
| OVERALL LENGTH | 31.0 MILLIMETERS NOMINAL |
| DIAMETER | 26.1 MILLIMETERS NOMINAL |
| COLOR | OLIVE DRAB |
| SHELL MATERIAL | ALUMINUM |
| SHELL SURFACE TREATMENT | CADMIUM |
| END ITEM IDENTIFICATION | B-2 BOMBER |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | CONNECTOR, PLUG, FIBER OPTIC, STRAIGHT TYPE |
