NSN 6060-01-578-3146
Part Details | FIBER OPTIC RECEPTACLE CONNECTOR
6060-01-578-3146 A fiber optic fitting with or without contact(s) constructed to be affixed to a fiber optic cable to join with another fiber optic connector(s) and is designed to be mounted on a bulkhead, wall, chassis, panel, or PRINTED WIRING BOARD. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, RECEPTACLE, ELECTRICAL; LAMPHOLDER; JACK, TELEPHONE; SOCKET (as modified); DUMMY CONNECTOR, RECEPTACLE; JACK ASSEMBLY, TIP; and PLUG ASSEMBLY, TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified).
Alternate Parts: XLCMM, XLC-MM, 6060-01-578-3146, 01-578-3146, 6060015783146, 015783146
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | OCT 01, 2009 | 01-578-3146 | 33907 ( CONNECTOR, RECEPTACLE, FIBER OPTIC ) |
REFERENCE DRAWINGS & PICTURES

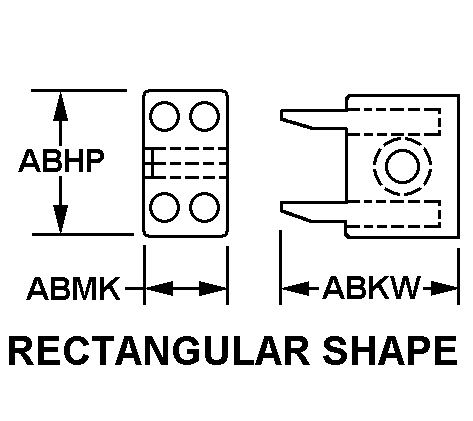

RECTANGULAR SHAPE
Cross Reference | NSN 6060-01-578-3146
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| XLC-MM | 07890 | SIEMON COMPANY, THEDBA SIEMON GLOBAL PROJECT SERVICES |
Technical Data | NSN 6060-01-578-3146
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGULAR SHAPE |
| CONNECTOR LOCKING METHOD | CLIP |
| SPECIAL FEATURES | DUPLEX MULTIMODE LC ADAPTER, BAYONET STYLE QUARTER-TURN MATING DESIGN |
