NSN 6060-01-577-0205
Part Details | FIBER OPTIC PLUG CONNECTOR
6060-01-577-0205 A fiber optic fitting with or without contact(s) constructed to be affixed to the end of a fiber optic cable for convenience in joining with another fiber optic connector(s), and is not designed to be mounted on a bulkhead, chassis, or panel. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, PLUG, ELECTRICAL; PLUG, TIP; DUMMY PLUG, TELEPHONE; DUMMY CONNECTOR, PLUG; INSERT, ELECTRICAL CONNECTOR; SOCKET, PLUG-IN ELECTRONIC COMPONENTS; JACK ASSEMBLY, TIP; PLUG ASSEMBLY TIP; and JACK TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified).
Alternate Parts: 6603S, 6603-S, 6603S, 6603-S, LCSC6603S, LCS-C-6603-S, 6603S, 6603-S, 6603S, 6603-S, 6060-01-577-0205, 01-577-0205, 6060015770205, 015770205
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | AUG 24, 2009 | 01-577-0205 | 33906 ( CONNECTOR, PLUG, FIBER OPTIC ) |
REFERENCE DRAWINGS & PICTURES

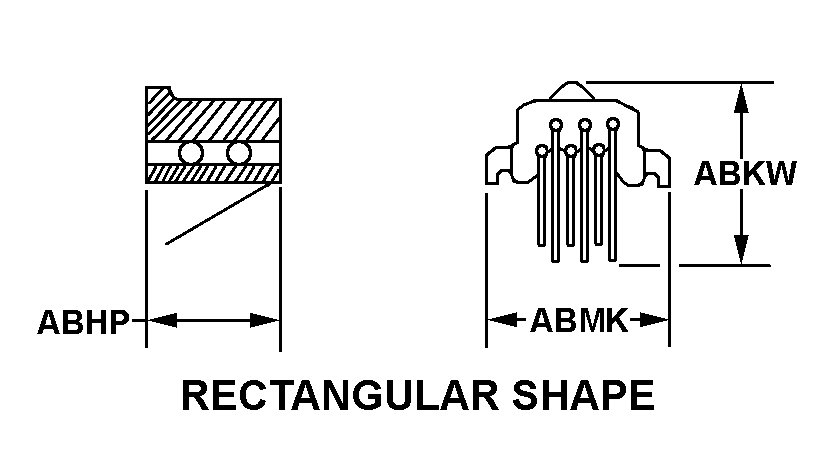

RECTANGULAR SHAPE
Cross Reference | NSN 6060-01-577-0205
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6603-S | 53387 | 3M COMPANYDIV ELECTRO AND COMMUNICATIONS |
| 6603-S | KCMS9 | BLUE HELIX LTD |
| LCS-C-6603-S | KCMS9 | BLUE HELIX LTD |
| 6603-S | 75037 | MINNESOTA MINING AND MFG CO 3MCOMPANY |
| 6603-S | U8793 | TECH OPTICS LIMITED |
Technical Data | NSN 6060-01-577-0205
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGULAR SHAPE |
| CONNECTOR LOCKING METHOD | LATCH |
| MATING END QUANTITY | 1 |
| SPECIAL FEATURES | HOT MELT LC IS A MULTIMODE SIMPLEX CONNECTOR DESIGNED FOR TERMINATION OF 2.4 TO 3.0 MILLIMETER JACKETED CABLE. A BEIGE SIMPLEX LATCH ACTUATOR, SHRINK TUBE STRAIN RELIEF, AND SINGLE WHITE BOOT ARE INCLUDED |
