NSN 6060-01-530-6116
Part Details | FIBER OPTIC CONNECTOR CABLE CLAMP
6060-01-530-6116 A clamp specifically designed to hold an optical cable firmly in an optical connector. It must contain provisions for attachment to an optical connector.
Alternate Parts: 9540003BP, 95-400-03-BP, 6060-01-530-6116, 01-530-6116, 6060015306116, 015306116
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | JUN 06, 2005 | 01-530-6116 | 33903 ( CLAMP, CABLE, FIBER OPTIC CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

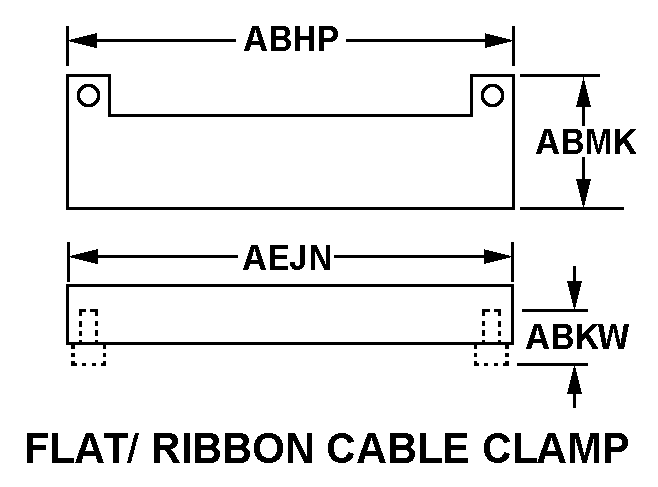

FLAT/ RIBBON CABLE CLAMP
Cross Reference | NSN 6060-01-530-6116
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 95-400-03-BP | 61092 | CORNING OPTICAL COMMUNICATIONS LLC |
Technical Data | NSN 6060-01-530-6116
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FLAT/ RIBBON CABLE CLAMP |
| OVERALL LENGTH | 25.0 MILLIMETERS NOMINAL |
| OVERALL HEIGHT | 9.9 MILLIMETERS NOMINAL |
| OVERALL WIDTH | 22.9 MILLIMETERS NOMINAL |
| END ITEM IDENTIFICATION | E/I AN/FYC-22A, VISUAL INFORMATION DISPLAY SYSTEM (VIDS) |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | CLIP, SC DUPLEX, CORNING |
