NSN 6060-01-530-2309
Part Details | FIBER OPTIC CONNECTOR ADAPTER
6060-01-530-2309 An adapter which provides facilities for joining two or more fiber optic connectors, which design or functions will not normally warrant their junction. It is not designed for permanent attachment to a fiber optic cable. The physical shape of a fiber optic connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER (3), CONNECTOR, FIBER OPTIC. Excludes ADAPTER, CONNECTOR; ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPBASE TO CONNECTOR; ADAPTER, CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. See also COUPLER, FIBER OPTIC. For items designed to make a permanent connection between optical conductors use item name SPLICE, FIBER OPTIC CONDUCTOR.
Alternate Parts: 861671010, 86167-1010, 6060-01-530-2309, 01-530-2309, 6060015302309, 015302309
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | MAY 18, 2005 | 01-530-2309 | 33905 ( ADAPTER, CONNECTOR, FIBER OPTIC ) |

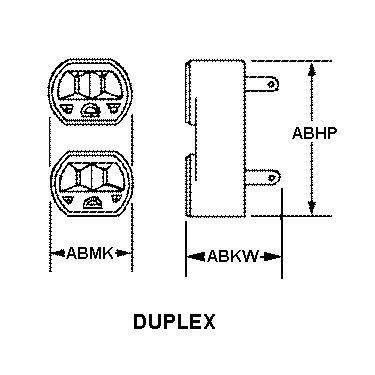

REFERENCE DRAWINGS & PICTURES
DUPLEX
Cross Reference | NSN 6060-01-530-2309
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 86167-1010 | 1UX99 | MOLEX INCORPORATEDDIV MOLEX CONNECTOR CORPORATION |
Technical Data | NSN 6060-01-530-2309
| Characteristic | Specifications |
|---|---|
| BODY STYLE | DUPLEX |
| OVERALL LENGTH | 1.366 INCHES NOMINAL |
| OVERALL HEIGHT | 1.112 INCHES NOMINAL |
| OVERALL WIDTH | 0.390 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| MATING END QUANTITY | 2 |
| SPECIAL FEATURES | SC TO ST DUPLEX; BEIGE BODY; PHOSPHOR BRONZE ALIGNMENT SLEEVE |
