NSN 6060-01-522-7767
Part Details | FIBER OPTIC PLUG CONNECTOR
6060-01-522-7767 A fiber optic fitting with or without contact(s) constructed to be affixed to the end of a fiber optic cable for convenience in joining with another fiber optic connector(s), and is not designed to be mounted on a bulkhead, chassis, or panel. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, PLUG, ELECTRICAL; PLUG, TIP; DUMMY PLUG, TELEPHONE; DUMMY CONNECTOR, PLUG; INSERT, ELECTRICAL CONNECTOR; SOCKET, PLUG-IN ELECTRONIC COMPONENTS; JACK ASSEMBLY, TIP; PLUG ASSEMBLY TIP; and JACK TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified).
Alternate Parts: 55046571, 5504657-1, 5046571, 504657-1, 6060-01-522-7767, 01-522-7767, 6060015227767, 015227767
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | AUG 11, 2004 | 01-522-7767 | 33906 ( CONNECTOR, PLUG, FIBER OPTIC ) |
REFERENCE DRAWINGS & PICTURES

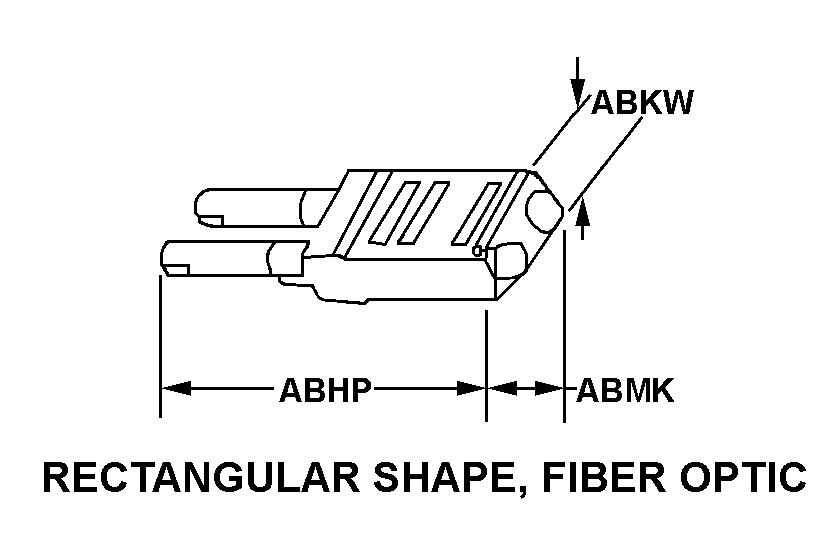

RECTANGULAR SHAPE, FIBER OPTIC
Cross Reference | NSN 6060-01-522-7767
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5504657-1 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 504657-1 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 6060-01-522-7767
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGULAR SHAPE, FIBER OPTIC |
| OVERALL LENGTH | 1.980 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.385 INCHES MAXIMUM |
| OVERALL WIDTH | 0.906 INCHES MAXIMUM |
| SHELL MATERIAL | PLASTIC |
| MATING END QUANTITY | 2 |
| END ITEM IDENTIFICATION | AN/WLD-1(V) REMOTE MINE HUNTING SYSTEM |
