NSN 6060-01-488-8347
Part Details | FIBER OPTIC PLUG CONNECTOR
6060-01-488-8347 A fiber optic fitting with or without contact(s) constructed to be affixed to the end of a fiber optic cable for convenience in joining with another fiber optic connector(s), and is not designed to be mounted on a bulkhead, chassis, or panel. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, PLUG, ELECTRICAL; PLUG, TIP; DUMMY PLUG, TELEPHONE; DUMMY CONNECTOR, PLUG; INSERT, ELECTRICAL CONNECTOR; SOCKET, PLUG-IN ELECTRONIC COMPONENTS; JACK ASSEMBLY, TIP; PLUG ASSEMBLY TIP; and JACK TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified).
Alternate Parts: 180008NF0013041, 180-008NF00-13-04-1, 6060-01-488-8347, 01-488-8347, 6060014888347, 014888347
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | SEP 05, 2001 | 01-488-8347 | 33906 ( CONNECTOR, PLUG, FIBER OPTIC ) |
REFERENCE DRAWINGS & PICTURES

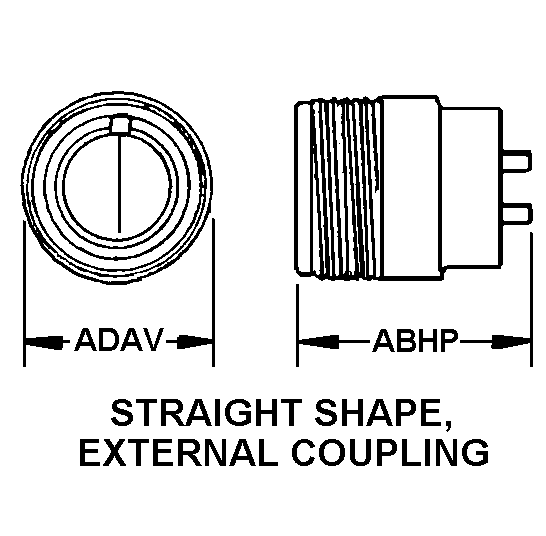

STRAIGHT SHAPE, EXTERNAL COUPLING
Cross Reference | NSN 6060-01-488-8347
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 180-008NF00-13-04-1 | 06324 | GLENAIR, INC. |
Technical Data | NSN 6060-01-488-8347
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 1.585 INCHES MINIMUM AND 1.600 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.126 INCHES MINIMUM AND 1.141 INCHES MAXIMUM |
| SHELL MATERIAL | NICKEL |
| SHELL SURFACE TREATMENT | CADMIUM |
| MATING END QUANTITY | 2 |
| SPECIAL FEATURES | FLOUROSILICONE 0-RING, HUGHES TERMINALS P/N 4569994H AND |
| END ITEM IDENTIFICATION | GUARDRAIL NSN 5821-01-421-0805 |
