NSN 6060-01-478-9985
Part Details | FIBER OPTIC CONNECTOR ADAPTER
6060-01-478-9985 An adapter which provides facilities for joining two or more fiber optic connectors, which design or functions will not normally warrant their junction. It is not designed for permanent attachment to a fiber optic cable. The physical shape of a fiber optic connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER (3), CONNECTOR, FIBER OPTIC. Excludes ADAPTER, CONNECTOR; ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPBASE TO CONNECTOR; ADAPTER, CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. See also COUPLER, FIBER OPTIC. For items designed to make a permanent connection between optical conductors use item name SPLICE, FIBER OPTIC CONDUCTOR.
Alternate Parts: 5036382, 503638-2, 6060-01-478-9985, 01-478-9985, 6060014789985, 014789985
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | OCT 05, 2000 | 01-478-9985 | 33905 ( ADAPTER, CONNECTOR, FIBER OPTIC ) |
REFERENCE DRAWINGS & PICTURES

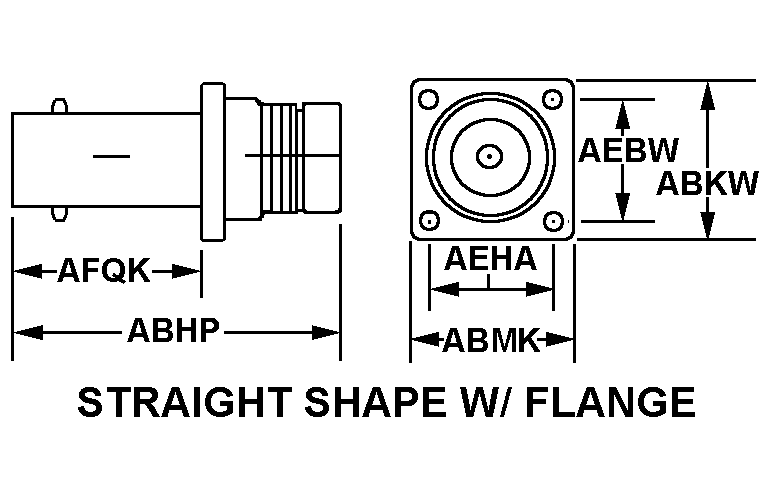

STRAIGHT SHAPE W/FLANGE
Cross Reference | NSN 6060-01-478-9985
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 503638-2 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 6060-01-478-9985
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE W/FLANGE |
| OVERALL LENGTH | 28.7 MILLIMETERS MINIMUM AND 29.2 MILLIMETERS MAXIMUM |
| OVERALL HEIGHT | 15.0 MILLIMETERS NOMINAL |
| OVERALL WIDTH | 15.0 MILLIMETERS NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 9.4 MILLIMETERS MINIMUM AND 9.6 MILLIMETERS MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 9.4 MILLIMETERS MINIMUM AND 9.6 MILLIMETERS MAXIMUM |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 12.9 MILLIMETERS MINIMUM AND 13.1 MILLIMETERS MAXIMUM |
| MATING END QUANTITY | 1 |
| SPECIAL FEATURES | MATL, BOD,ZINC DIECAST; DUST COVER, VINYL AND THERMOPLASTIC RUBBER; DWG NAME, ASSEMBLY,COUPLING BUSHING, 2.5MM BAYONET TO AMP SC;CONNECTOR TYPE, SIMPLEX; ADAPTER TYPE, SC TO ST-STYLE |
