Part Details | FIBER OPTIC CONNECTOR ADAPTER
6060-01-468-7286 An adapter which provides facilities for joining two or more fiber optic connectors, which design or functions will not normally warrant their junction. It is not designed for permanent attachment to a fiber optic cable. The physical shape of a fiber optic connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER (3), CONNECTOR, FIBER OPTIC. Excludes ADAPTER, CONNECTOR; ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPBASE TO CONNECTOR; ADAPTER, CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. See also COUPLER, FIBER OPTIC. For items designed to make a permanent connection between optical conductors use item name SPLICE, FIBER OPTIC CONDUCTOR.
Alternate Parts: 40819201, 408-192-01, 6060-01-468-7286, 01-468-7286, 6060014687286, 014687286
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | OCT 20, 1999 | 01-468-7286 | 33905 ( ADAPTER, CONNECTOR, FIBER OPTIC ) |
REFERENCE DRAWINGS & PICTURES

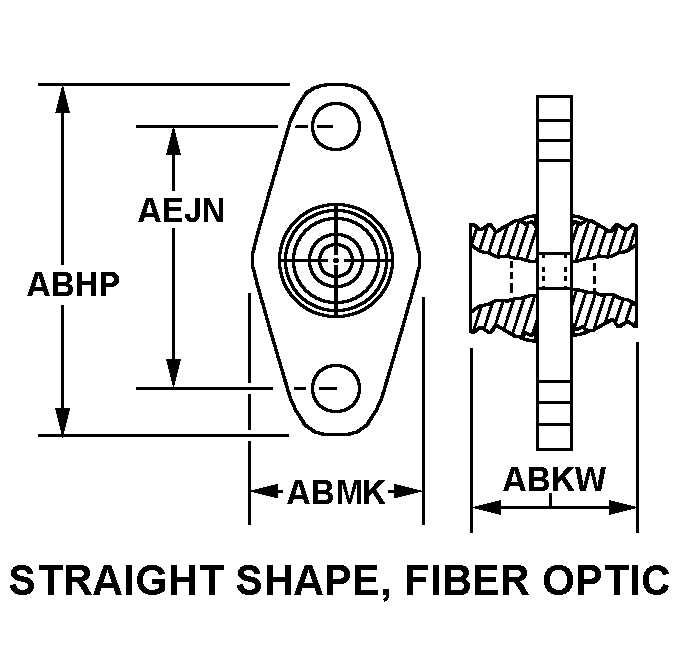

STRAIGHT SHAPE, FIBER OPTIC
Cross Reference | NSN 6060-01-468-7286
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 408-192-01 | 26742 | METHODE ELECTRONICS INC |
Technical Data | NSN 6060-01-468-7286
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE, FIBER OPTIC |
| OVERALL LENGTH | 0.866 INCHES NOMINAL |
| OVERALL HEIGHT | 0.874 INCHES NOMINAL |
| OVERALL WIDTH | 0.366 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.707 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.092 INCHES NOMINAL |
| MATING END QUANTITY | 2 |
| SPECIAL FEATURES | ENDS CONFORM TO M8 X 0.75 THREAD TO 6 BY 4 TUBE SIZE. COLOR IS BLUE, SLEEVE MATERIAL IS ZIRCONIA CERAMIC |
| END ITEM IDENTIFICATION | CONNECTOR ASSY |
