NSN 6060-01-461-8137
Part Details | FIBER OPTIC CONNECTOR ADAPTER
6060-01-461-8137 An adapter which provides facilities for joining two or more fiber optic connectors, which design or functions will not normally warrant their junction. It is not designed for permanent attachment to a fiber optic cable. The physical shape of a fiber optic connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER (3), CONNECTOR, FIBER OPTIC. Excludes ADAPTER, CONNECTOR; ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPBASE TO CONNECTOR; ADAPTER, CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. See also COUPLER, FIBER OPTIC. For items designed to make a permanent connection between optical conductors use item name SPLICE, FIBER OPTIC CONDUCTOR.
Alternate Parts: 5018051, 501805-1, 6060-01-461-8137, 01-461-8137, 6060014618137, 014618137
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | JAN 06, 1999 | 01-461-8137 | 33905 ( ADAPTER, CONNECTOR, FIBER OPTIC ) |
REFERENCE DRAWINGS & PICTURES

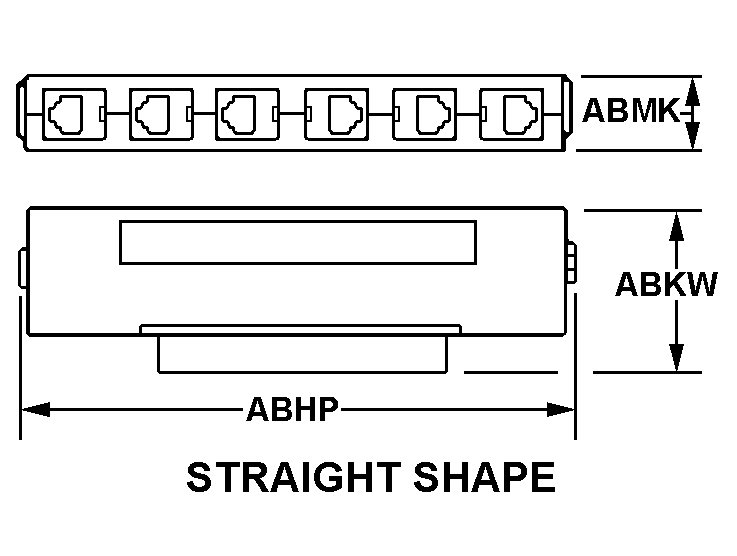

STRAIGHT SHAPE
Cross Reference | NSN 6060-01-461-8137
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 501805-1 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 6060-01-461-8137
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE |
| OVERALL LENGTH | 2.910 INCHES NOMINAL |
| OVERALL HEIGHT | 1.470 INCHES NOMINAL |
| OVERALL WIDTH | 0.462 INCHES NOMINAL |
| POLARIZATION METHOD | KEY OR MULTIPLE KEY |
| MATING END QUANTITY | 1 |
| SPECIAL FEATURES | MATERIAL PBT MOULDING COMPOUND; MANUFACTURER DUPLEX TO DUPLEX COUPLING ASSEMBLY W/O MOUNTING EARS, AMP FSD |
