NSN 6060-01-416-8623
Part Details | FIBER OPTIC CONNECTOR ADAPTER
6060-01-416-8623 An adapter which provides facilities for joining two or more fiber optic connectors, which design or functions will not normally warrant their junction. It is not designed for permanent attachment to a fiber optic cable. The physical shape of a fiber optic connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER (3), CONNECTOR, FIBER OPTIC. Excludes ADAPTER, CONNECTOR; ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPBASE TO CONNECTOR; ADAPTER, CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. See also COUPLER, FIBER OPTIC. For items designed to make a permanent connection between optical conductors use item name SPLICE, FIBER OPTIC CONDUCTOR.
Alternate Parts: YDG903052, YDG9030-52, CHA049, CHA-049, 2088503402, 2088-5034-02, 6060-01-416-8623, 01-416-8623, 6060014168623, 014168623
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | JUL 26, 1995 | 01-416-8623 | 33905 ( ADAPTER, CONNECTOR, FIBER OPTIC ) |
REFERENCE DRAWINGS & PICTURES

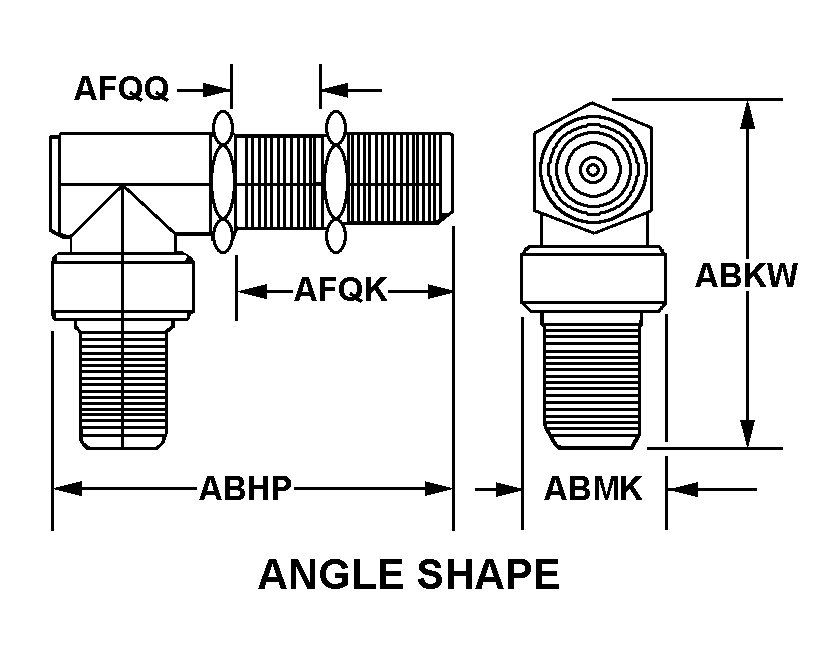

ANGLE SHAPE
Cross Reference | NSN 6060-01-416-8623
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| YDG9030-52 | K0978 | BAE SYSTEMS |
| CHA-049 | K0978 | BAE SYSTEMS |
| 2088-5034-02 | 26805 | TYCO ELECTRONICS CORP |
Technical Data | NSN 6060-01-416-8623
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ANGLE SHAPE |
| OVERALL LENGTH | 0.675 INCHES NOMINAL |
| OVERALL HEIGHT | 0.585 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.550 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL CORROSION RESISTING |
| SHELL SURFACE TREATMENT | PASSIVATE |
| MATING END QUANTITY | 2 |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES GOLD |
