NSN 6060-01-370-7060
Part Details | FIBER OPTIC CONNECTOR ADAPTER
6060-01-370-7060 An adapter which provides facilities for joining two or more fiber optic connectors, which design or functions will not normally warrant their junction. It is not designed for permanent attachment to a fiber optic cable. The physical shape of a fiber optic connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER (3), CONNECTOR, FIBER OPTIC. Excludes ADAPTER, CONNECTOR; ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPBASE TO CONNECTOR; ADAPTER, CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. See also COUPLER, FIBER OPTIC. For items designed to make a permanent connection between optical conductors use item name SPLICE, FIBER OPTIC CONDUCTOR.
Alternate Parts: 1855025, PCST, PC-ST, 3004STC1002, 300-4STC-1002, 1855025, 6060-01-370-7060, 01-370-7060, 6060013707060, 013707060
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | JAN 29, 1993 | 01-370-7060 | 33905 ( ADAPTER, CONNECTOR, FIBER OPTIC ) |
REFERENCE DRAWINGS & PICTURES

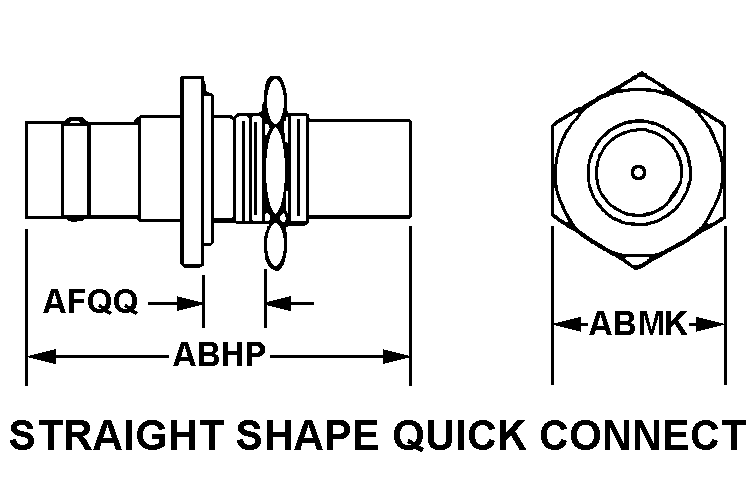

STRAIGHT SHAPE QUICK CONNECT
Cross Reference | NSN 6060-01-370-7060
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1855025 | 0HTL0 | AIR TRANSPORT INTL INC |
| PC-ST | 0M2L9 | AMERICAN FIBERTEK INC |
| 300-4STC-1002 | 61585 | AMP INC |
| 1855025 | 0CRU0 | C Q CONSTRUCTION CORPORATION |
Technical Data | NSN 6060-01-370-7060
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE QUICK CONNECT |
| OVERALL LENGTH | 1.155 INCHES NOMINAL |
| OVERALL WIDTH | 0.440 INCHES NOMINAL |
| MOUNTING FACILITY THICKNESS | 0.375 INCHES NOMINAL |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| SHELL MATERIAL | ZINC ALLOY |
| SHELL SURFACE TREATMENT | NICKEL |
| POLARIZATION METHOD | KEY, MULTIPLE KEY GROOVE |
| INSERT POSITION IN DEG | 45.0 |
| MATING END QUANTITY | 2 |
