NSN 5999-00-107-5472
Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-00-107-5472 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: 6123A22, 6123A2-2, 5999-00-107-5472, 00-107-5472, 5999001075472, 001075472
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 20, 1972 | 00-107-5472 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |

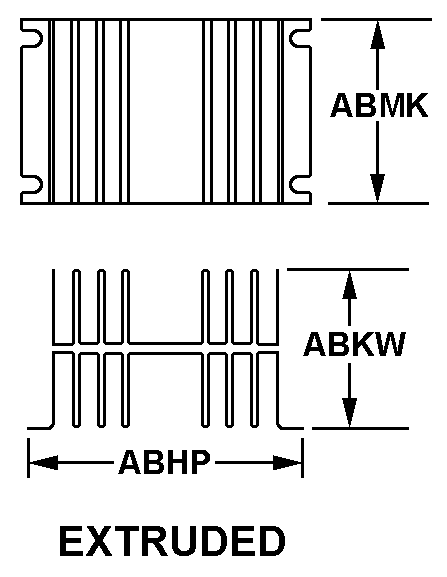

REFERENCE DRAWINGS & PICTURES
EXTRUDED
Cross Reference | NSN 5999-00-107-5472
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6123A2-2 | 13103 | THERMALLOY CO INC |
Technical Data | NSN 5999-00-107-5472
| Characteristic | Specifications |
|---|---|
| BODY STYLE | EXTRUDED |
| OVERALL LENGTH | 4.570 INCHES MINIMUM AND 4.680 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.237 INCHES MINIMUM AND 1.263 INCHES MAXIMUM |
| OVERALL WIDTH | 2.978 INCHES MINIMUM AND 3.022 INCHES MAXIMUM |
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | ANODIZE |
