NSN 5999-00-095-3805
Part Details | ELECTRICAL CLAMP
5999-00-095-3805 A clamp specifically designed to carry electric current. See also CLIP, ELECTRICAL; SPLICE, CONDUCTOR; TERMINAL, LUG; and RETAINER (as modified). Excludes BRACKET, PIPE.
Alternate Parts: 4846611, 484661-1, 4846611, 484661-1, 693, 5999-00-095-3805, 00-095-3805, 5999000953805, 000953805
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 08, 1972 | 00-095-3805 | 00865 ( CLAMP, ELECTRICAL ) |

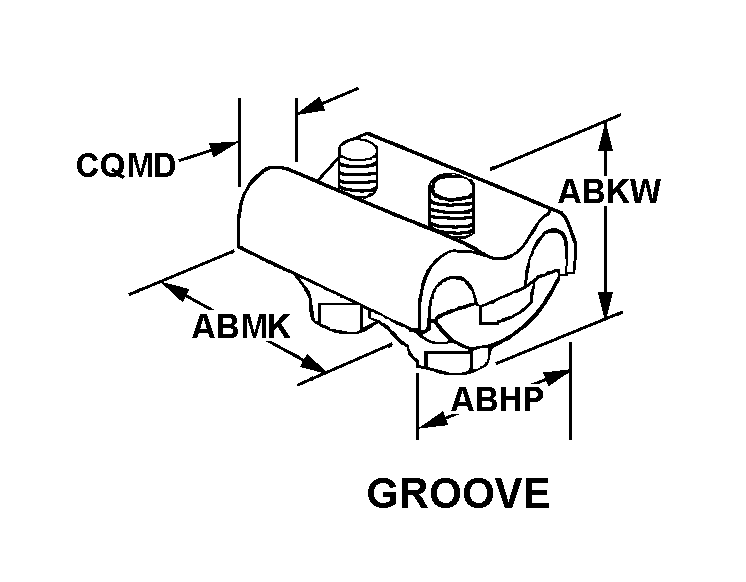

REFERENCE DRAWINGS & PICTURES
GROOVE
Cross Reference | NSN 5999-00-095-3805
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 484661-1 | 49956 | RAYTHEON COMPANYDBA RAYTHEON |
| 484661-1 | 3B150 | RAYTHEON COMPANYDBA RAYTHEON |
| 693 | 14559 | THOMPSON LIGHTNING PROTECTION, INC. |
Technical Data | NSN 5999-00-095-3805
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | GROOVE |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 2.250 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| ACCOMMODATION HOLE WIDTH | 0.625 INCHES NOMINAL |
| MOUNTING METHOD | BOLT |
| MOUNTING DEVICE QUANTITY | 2 |
| SPECIAL FEATURES | DESIGNED FOR 0.250 IN. MIN,0.750 IN. MAX DIA CABLE |
