NSN 5999-00-035-3767

Part Details | ELECTRICAL SHIELD PLATE

5999-00-035-3767 A metallic or metallic coated item which is rigid or semirigid, flat, and generally smooth. Its thickness is small in comparison to both its length and width, and is designed to prevent or reduce stray electro-magnetic and/or electrostatic fields between components or items. It may be used as a mechanical guard. Excludes PLATE (as otherwise modified); SHIELD (as modified); and SPACER, PLATE.

Alternate Parts: 2000426801, 200042680-1, 5999-00-035-3767, 00-035-3767, 5999000353767, 000353767

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59NOV 01, 197200-035-376702463 ( PLATE, ELECTRICAL SHIELD )
REFERENCE DRAWINGS & PICTURES

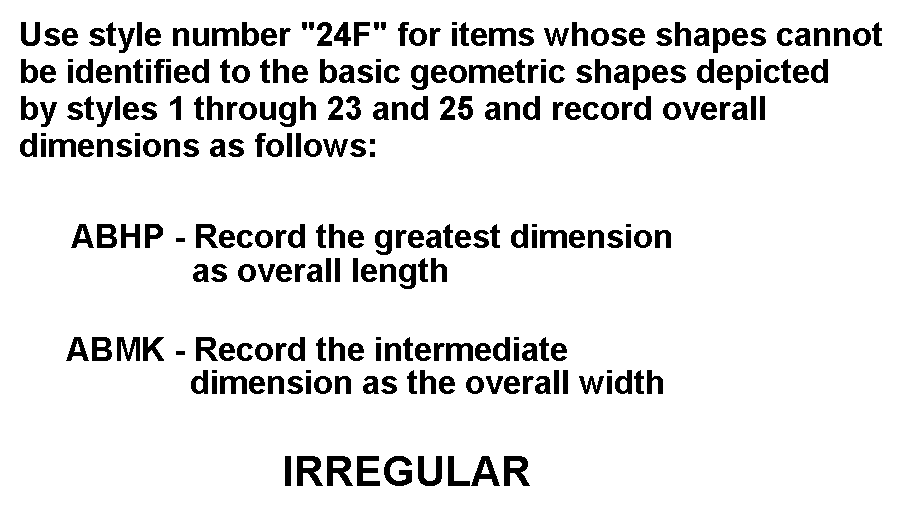

IRREGULAR

PLATE,ELECTRICAL SH | 5999-00-035-3767, 000353767
Cross Reference | NSN 5999-00-035-3767
Part Number Cage Code Manufacturer
200042680-101220SYSTRON-DONNER CORPMICROWAVE/INSTRUMENT DIV
Technical Data | NSN 5999-00-035-3767
Characteristic Specifications
BODY STYLE IRREGULAR
OVERALL LENGTH0.550 INCHES MINIMUM AND 0.560 INCHES MAXIMUM
OVERALL WIDTH0.175 INCHES NOMINAL
MATERIAL COPPER ALLOY 260
MATERIAL DOCUMENT AND CLASSIFICATIONQQ-B-626,1 TO 2 H FED SPEC SINGLE MATERIAL RESPONSE
SURFACE TREATMENT SILVER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATIONQQ-S-365,TYPE 3,GRA FED SPEC SINGLE TREATMENT RESPONSE
PRECIOUS MATERIAL SILVER
PRECIOUS MATERIAL AND LOCATIONEXTERIOR SURFACES SILVER
