NSN 5999-00-007-4167
Part Details | ELECTRICAL SHIELD RETAINER
5999-00-007-4167 An item specifically designed to position and restrain the movement of an electrical shield in relation to another item. Retainer must not be an integral part of the shield.
Alternate Parts: 270710, 2707-10, T1630019H, T16-3001-9H, 5999-00-007-4167, 00-007-4167, 5999000074167, 000074167
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 07, 1972 | 00-007-4167 | 16130 ( RETAINER, ELECTRICAL SHIELD ) |
REFERENCE DRAWINGS & PICTURES

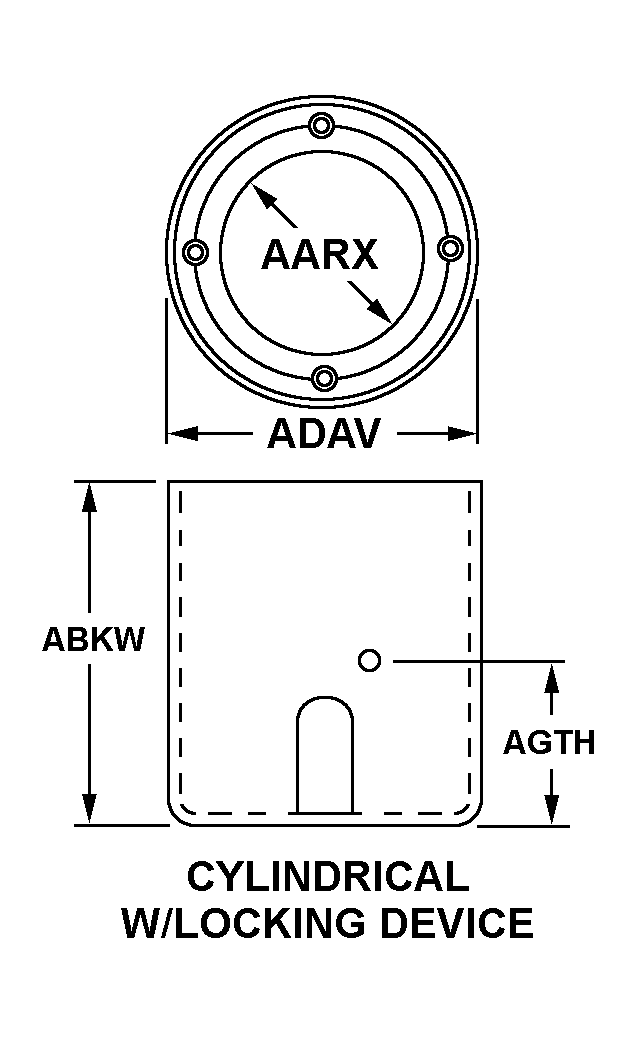

CYLINDRICAL W/LOCKING DEVICE
Cross Reference | NSN 5999-00-007-4167
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2707-10 | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIAINC |
| T16-3001-9H | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIAINC |
Technical Data | NSN 5999-00-007-4167
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250 TO 11 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | CYLINDRICAL W/LOCKING DEVICE |
| INSIDE DIAMETER | 1.300 INCHES NOMINAL |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| OVERALL DIAMETER | 2.406 INCHES MAXIMUM |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | FRICTION FASTENER |
