NSN 5990-00-137-3971
Part Details | RECEIVER SYNCHRO
5990-00-137-3971 A synchro consisting of a stator and rotor inductively coupled. The rotor is free to turn in accordance with the electrical input from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Alternate Parts: 18200002, 18-2000-02, URH10RNE4F010, URH-10-RNE-4/F010, 5990-00-137-3971, 00-137-3971, 5990001373971, 001373971
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 28, 1971 | 00-137-3971 | 02072 ( SYNCHRO, RECEIVER ) |
REFERENCE DRAWINGS & PICTURES

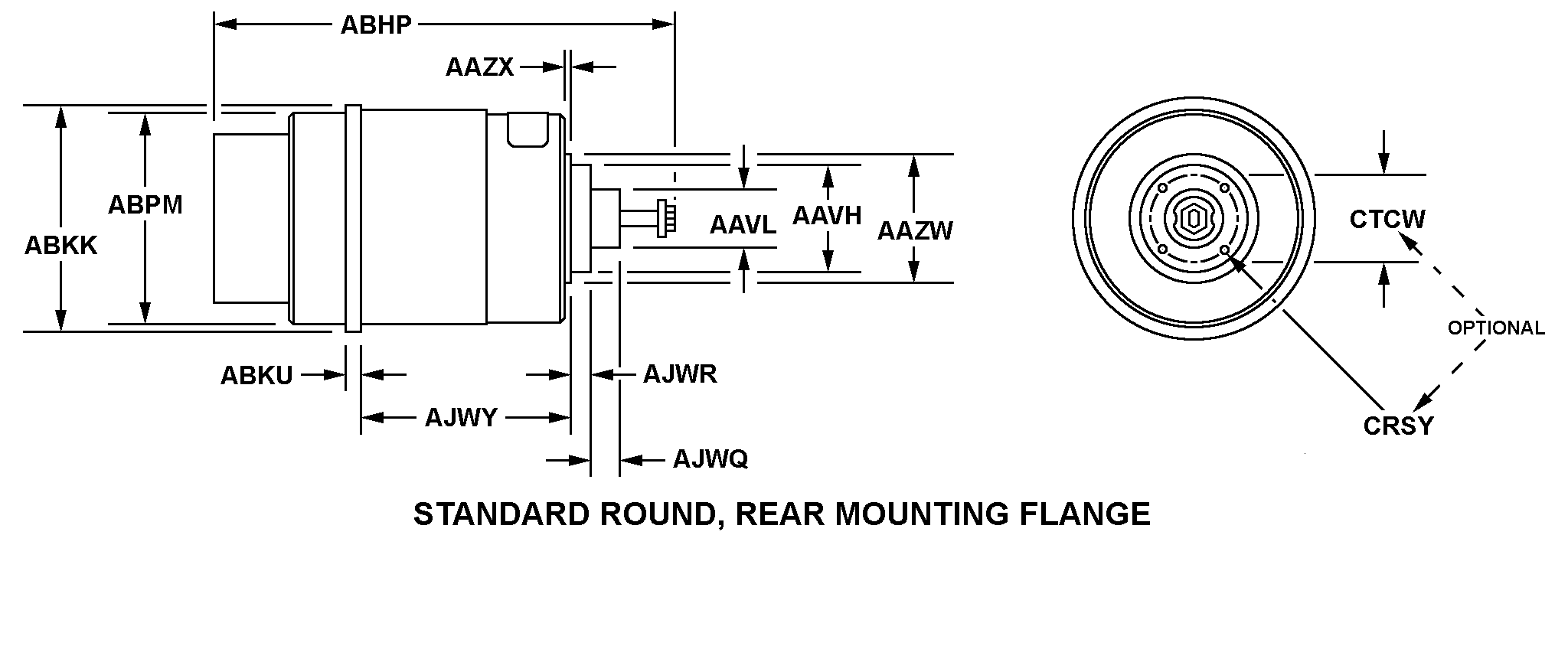

STANDARD ROUND, REAR MOUNTING FLANGE
Cross Reference | NSN 5990-00-137-3971
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 18-2000-02 | 96774 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| URH-10-RNE-4/F010 | 4H618 | MOOG INC.DBA MOOG COMPONENTS GROUP |
Technical Data | NSN 5990-00-137-3971
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 28 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 26.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 220.0 MILLIAMPERES MAXIMUM |
| ROTOR INPUT ELECTRICAL POWER RATING | 500.0 MILLIWATTS MAXIMUM |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 220.00 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 88.00 NOMINAL |
| ROTOR DC RESISTANCE IN OHMS | 12.50 NOMINAL |
| STATOR DC RESISTANCE IN OHMS | 4.70 NOMINAL |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | M40.0/P40.0 |
| BODY STYLE | STANDARD ROUND, REAR MOUNTING FLANGE |
| SHOULDER DIAMETER | 0.7500 INCHES NOMINAL |
| PILOT DIAMETER | 0.5000 INCHES NOMINAL |
| SECOND SHOULDER DIAMETER | 1.0000 INCHES NOMINAL |
| SECOND SHOULDER LENGTH | 0.0250 INCHES NOMINAL |
| OVERALL LENGTH | 1.3440 INCHES NOMINAL |
| FLANGE DIAMETER | 2.8000 INCHES NOMINAL |
| FLANGE THICKNESS | 0.0930 INCHES NOMINAL |
| BODY DIAMETER | 2.7500 INCHES NOMINAL |
| PILOT LENGTH | 0.1560 INCHES NOMINAL |
| SHOULDER LENGTH | 0.1320 INCHES NOMINAL |
| SECOND SHOULDER FACE TO REAR FLANGE DISTANCE | 0.7750 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, STAINLESS |
| SPECIAL FEATURES | CHROMATE CHEMICAL FILM ADDED AFTER MACHINE ASSEMBLY |
| FRAGILITY FACTOR | MODERATELY RUGGED |
