NSN 5990-00-127-6749

Part Details | ELECTRICAL RESOLVER

5990-00-127-6749 An item consisting of a rotor and a stator inductively coupled. It usually has two rotor windings displaced from each other by 90 degrees and two stator windings similarly displaced. The output voltage(s) is a trigonometric function of the input voltage(s) and the angular displacement of the rotor with respect to the stator. See also SYNCHRO (as modified) and GONIOMETER, ELECTRICAL. Excludes TRANSOLVER, ELECTRICAL and potentiometer sine/cosine electrical resolvers.

Alternate Parts: 401080, 401080, RS1510A2, RS15-10A2, VRG1512010A, VRG15120-10A, VRS1510A2, VRS15-10A2, 5990-00-127-6749, 00-127-6749, 5990001276749, 001276749

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59NOV 27, 196800-127-674922966 ( RESOLVER, ELECTRICAL )
REFERENCE DRAWINGS & PICTURES

STANDARD ROUND B

RESOLVER,ELECTRICAL | 5990-00-127-6749, 001276749

2 ROTOR, 2 STATOR

RESOLVER,ELECTRICAL | 5990-00-127-6749, 001276749
Cross Reference | NSN 5990-00-127-6749
Part Number Cage Code Manufacturer
40108020284AIMTRON SYSTEMS LLCDBA TARGET
40108012909CARDION INC
RS15-10A210112GENERAL DYNAMICS GLOBAL IMAGINGTECHNOLOGIES, INC.
VRG15120-10A10651VERNITRON CORP
VRS15-10A210651VERNITRON CORP
Technical Data | NSN 5990-00-127-6749
Characteristic Specifications
BODY SIZE15
STATOR INPUT VOLTAGE RATING IN VOLTS30.0 MAXIMUM
STATOR INPUT CURRENT RATING135.0 MILLIAMPERES MAXIMUM
STATOR INPUT ELECTRICAL POWER RATING700.0 MILLIWATTS MAXIMUM
FREQUENCY IN HERTZ1000.0 NOMINAL
ZRO IMPEDANCE MAGNITUDE IN OHMS200.00 NOMINAL
ZRO IMPEDANCE ANGLE IN DEG81.00 NOMINAL
ROTOR DC RESISTANCE IN OHMS12.00 NOMINAL
STATOR DC RESISTANCE IN OHMS16.00 NOMINAL
TRANSFORMATION RATIO1.000 ROTOR TO STATOR NOMINAL
COMPENSATION METHOD WINDING COMPENSATED
COMPENSATOR DC RESISTANCE IN OHMS32.00 NOMINAL
PHASE SHIFT ANGLE IN DEG4.200 INPUT TO OUTPUT NOMINAL
MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT20.00 OUTPUT
MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT30.00
INTERAXIS ERROR ANGULAR RANGE IN MINUTESM5.0/P5.0
ELECTRICAL ERROR ANGULAR RANGE IN MINUTESM7.0/P7.0
ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS4.0 CENTIMETER-GRAMS MAXIMUM
BODY STYLE STANDARD ROUND B
SHOULDER DIAMETER1.3120 INCHES MAXIMUM
PILOT DIAMETER0.8500 INCHES MAXIMUM
OVERALL LENGTH2.7110 INCHES MAXIMUM
FLANGE DIAMETER1.4370 INCHES MAXIMUM
FLANGE THICKNESS0.0930 INCHES NOMINAL
UNDERCUT WIDTH0.0780 INCHES NOMINAL
PILOT LENGTH0.0400 INCHES NOMINAL
SHOULDER LENGTH0.1320 INCHES NOMINAL
MOUNTING SURFACE TO TERMINAL END DISTANCE2.0510 INCHES MAXIMUM
ALIGNMENT HOLE DEPTH0.1870 INCHES MAXIMUM
ALIGNMENT HOLE BOLT CIRCLE DIAMETER1.1000 INCHES NOMINAL
ALIGNMENT HOLE QUANTITY4
TERMINAL TYPE AND QUANTITY12 SCREW
TERMINAL LOCATION REAR
BODY MATERIAL STEEL, CORROSION RESISTING
SHAFT MAXIMUM RADIAL PLAY0.0008 INCHES
SHAFT END PLAY0.0005 INCHES MINIMUM AND 0.0015 INCHES MAXIMUM
SHAFT MAXIMUM RUNOUT0.0010 INCHES

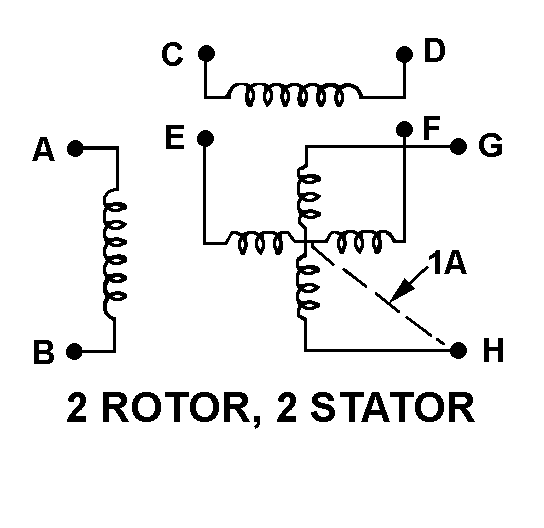

SCHEMATIC DIAGRAM DESIGNATOR5 2 ROTOR, 2 STATOR
TERMINAL DESIGNATOR AND SCHEMATIC POSITION CONNECTION R1 POSITION C AND CONNECTION R2 POSITION J AND CONNECTION R3 POSITION D AND CONNECTION R4 POSITION G AND CONNECTION S1 POSITION A AND CONNECTION S3 POSITION B AND CONNECTION C1 POSITION K AND CONNECTION C2 POSITION L
FRAGILITY FACTOR MODERATELY RUGGED
