NSN 5985-00-109-6026
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-109-6026 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 33571A, 051011001, 5985-00-109-6026, 00-109-6026, 5985001096026, 001096026
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 02, 1968 | 00-109-6026 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
REFERENCE DRAWINGS & PICTURES

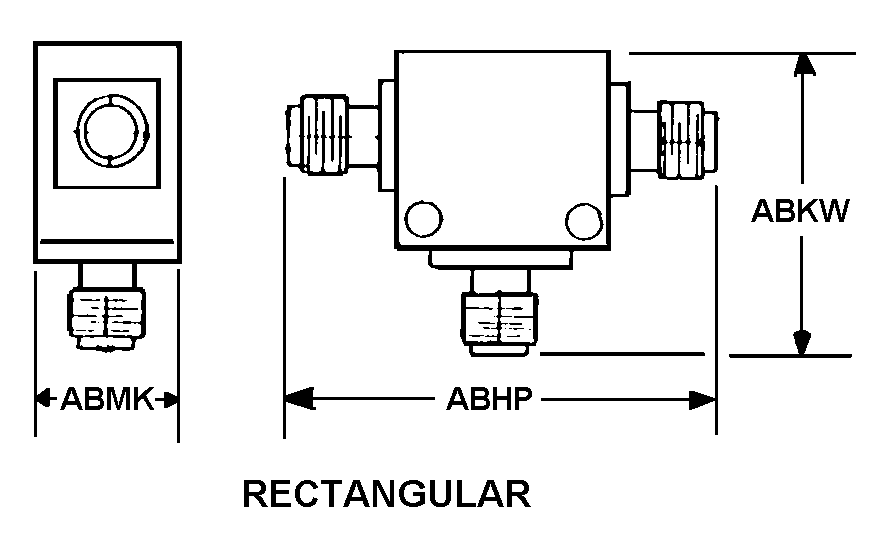

RECTANGULAR
Cross Reference | NSN 5985-00-109-6026
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 33571A | 28480 | HEWLETT-PACKARD COMPANYDBA HP |
| 051011001 | 92110 | SERVO CORPORATION OF AMERICA |
Technical Data | NSN 5985-00-109-6026
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 1 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 3 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | BNC AND N |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| SWITCHING TIME | 10.0 NANOSECONDS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 3.047 INCHES NOMINAL |
| OVERALL HEIGHT | 1.625 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 8 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| SPECIAL FEATURES | IMPEDANCE 50 OHMS |
| OPERATING TEMP RANGE | -55.0 TO +125.0 DEG CELSIUS |
| END ITEM IDENTIFICATION | GENERATOR-AMPLIFIER,SWEEP FREQUENCY,MICROWAVE AN/USM-287 |
