NSN 5985-00-086-9128
Part Details | WAVEGUIDE SWITCH
5985-00-086-9128 An item specifically designed for mechanically or electronically positioning one or more waveguide sections so as to couple it or them to other sections in a waveguide system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 1980000, 1980-000, 21814351, 2181435-1, 74045, 5985-00-086-9128, 00-086-9128, 5985000869128, 000869128
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-086-9128 | 05118 ( SWITCH, WAVEGUIDE ) |
REFERENCE DRAWINGS & PICTURES

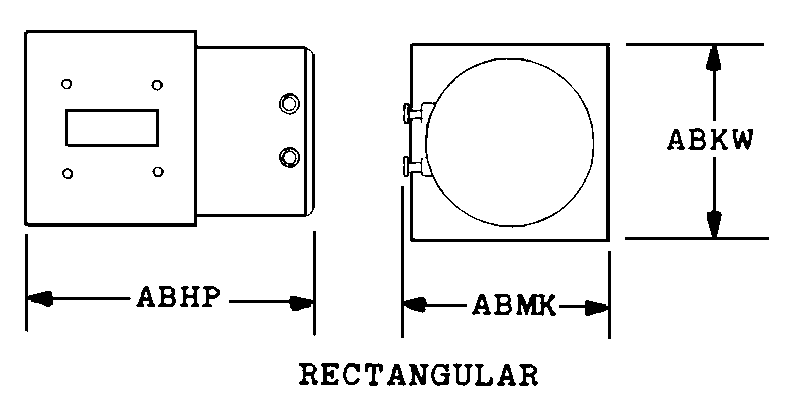

RECTANGULAR
Cross Reference | NSN 5985-00-086-9128
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1980-000 | 17480 | GUIDE MICROWAVE INC |
| 2181435-1 | 55939 | HONEYWELL INTLDBA HONEYWELL DIV BUSINESS AND |
| 74045 | 80006 | LITTON SYSTEMS INCAIRTRON DIV |
Technical Data | NSN 5985-00-086-9128
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.6 DC NOMINAL |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 NOMINAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 2 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 2 |
| TERMINAL TYPE AND QUANTITY | 2 WIRE HOOK AND 4 RECTANGULAR FLANGE |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |
| WAVEGUIDE FLANGE TYPE | CHOKE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 THREADED HOLE |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 3.500 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| OPERATING TEMP RANGE | -28.0 TO +85.0 DEG CELSIUS |
