NSN 5985-00-086-8708
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-086-8708 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: RC41CR1, 410023000, 410-0230-00, 4100230000, 410-0230-000, 4100230000, 410-0230-000, 5985-00-086-8708, 00-086-8708, 5985000868708, 000868708
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-086-8708 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

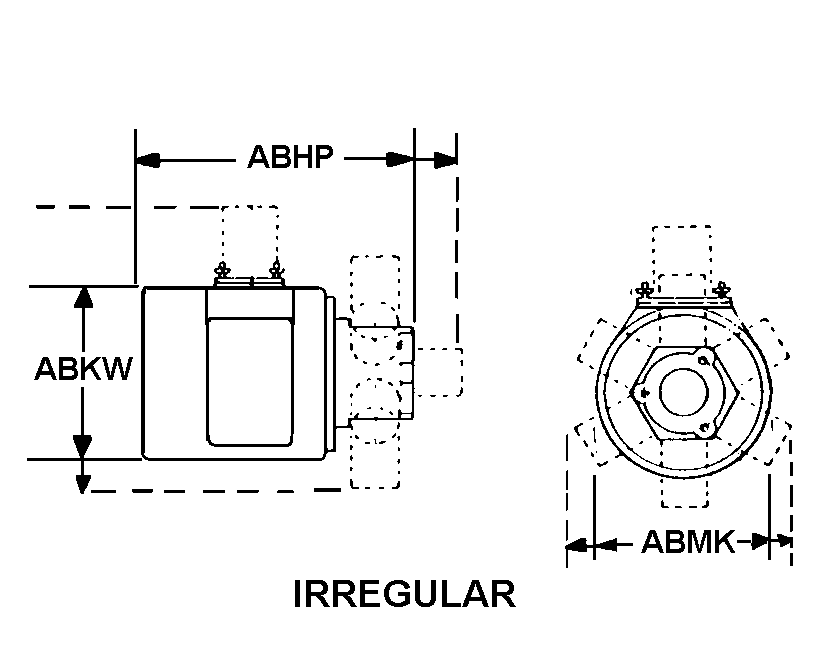

REFERENCE DRAWINGS & PICTURES
IRREGULAR
Cross Reference | NSN 5985-00-086-8708
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RC41CR1 | 73905 | JENNINGS TECHNOLOGY COMPANY LLCDBA JENNINGS |
| 410-0230-00 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 410-0230-000 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 410-0230-000 | 95105 | ROCKWELL COLLINS, INC.DIV GOVERNMENT SYSTEMS - DALLAS |
Technical Data | NSN 5985-00-086-8708
| Characteristic | Specifications |
|---|---|
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 2.6 DC NOMINAL |
| ACTUATOR VOLTAGE IN VOLTS | 6.0 NOMINAL |
| RF MAXIMUM VOLTAGE RATING | 1.5 KILOVOLTS PEAK |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 4 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | C |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| SWITCHING TIME | 3.0 MILLISECONDS |
| BODY STYLE | IRREGULAR |
| OVERALL LENGTH | 3.250 INCHES NOMINAL |
| OVERALL HEIGHT | 3.750 INCHES NOMINAL |
| OVERALL WIDTH | 3.750 INCHES NOMINAL |
