NSN 5985-00-084-8995
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-084-8995 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: M14603, M1460-3, M14603, M1460-3, M14603, M1460-3, 5985-00-084-8995, 00-084-8995, 5985000848995, 000848995
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-084-8995 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
REFERENCE DRAWINGS & PICTURES

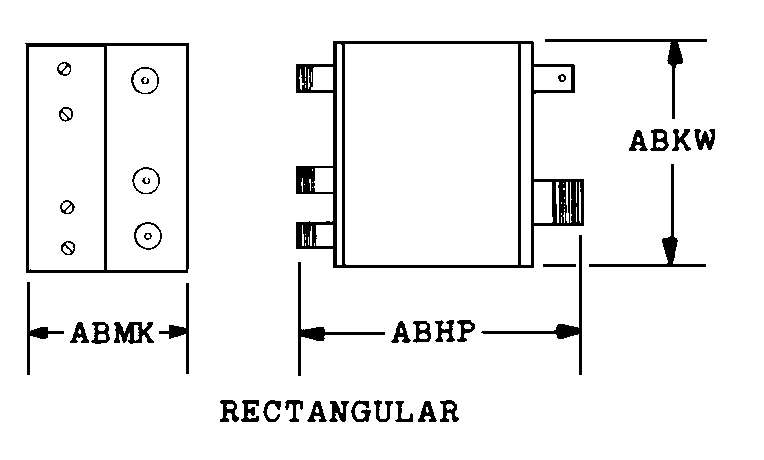

RECTANGULAR
Cross Reference | NSN 5985-00-084-8995
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M1460-3 | 00471 | DOW-KEY MICROWAVE CORPORATION |
| M1460-3 | 50140 | K&L MICROWAVE, INC. |
| M1460-3 | 82152 | L3 TECHNOLOGIES, INC.DBA DATRON ADVANCED TECHNOLOGIES |
Technical Data | NSN 5985-00-084-8995
| Characteristic | Specifications |
|---|---|
| RF MAXIMUM VOLTAGE RATING | 500.0 VOLTS RMS |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 3 |
| COUPLING POSITION QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE AND 3 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 4.080 INCHES NOMINAL |
| OVERALL HEIGHT | 3.500 INCHES NOMINAL |
| OVERALL WIDTH | 3.000 INCHES NOMINAL |
| OPERATING TEMP RANGE | -75.0 TO +185.0 DEG FAHRENHEIT |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND LOCATION | BODY SILVER |
