NSN 5985-00-084-4125
Part Details | VARIABLE ATTENUATOR
5985-00-084-4125 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Alternate Parts: 7226560P1, 7226560P1, AV90N, 97473716, 9747371-6, 5985-00-084-4125, 00-084-4125, 5985000844125, 000844125
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-084-4125 | 00838 ( ATTENUATOR, VARIABLE ) |
REFERENCE DRAWINGS & PICTURES

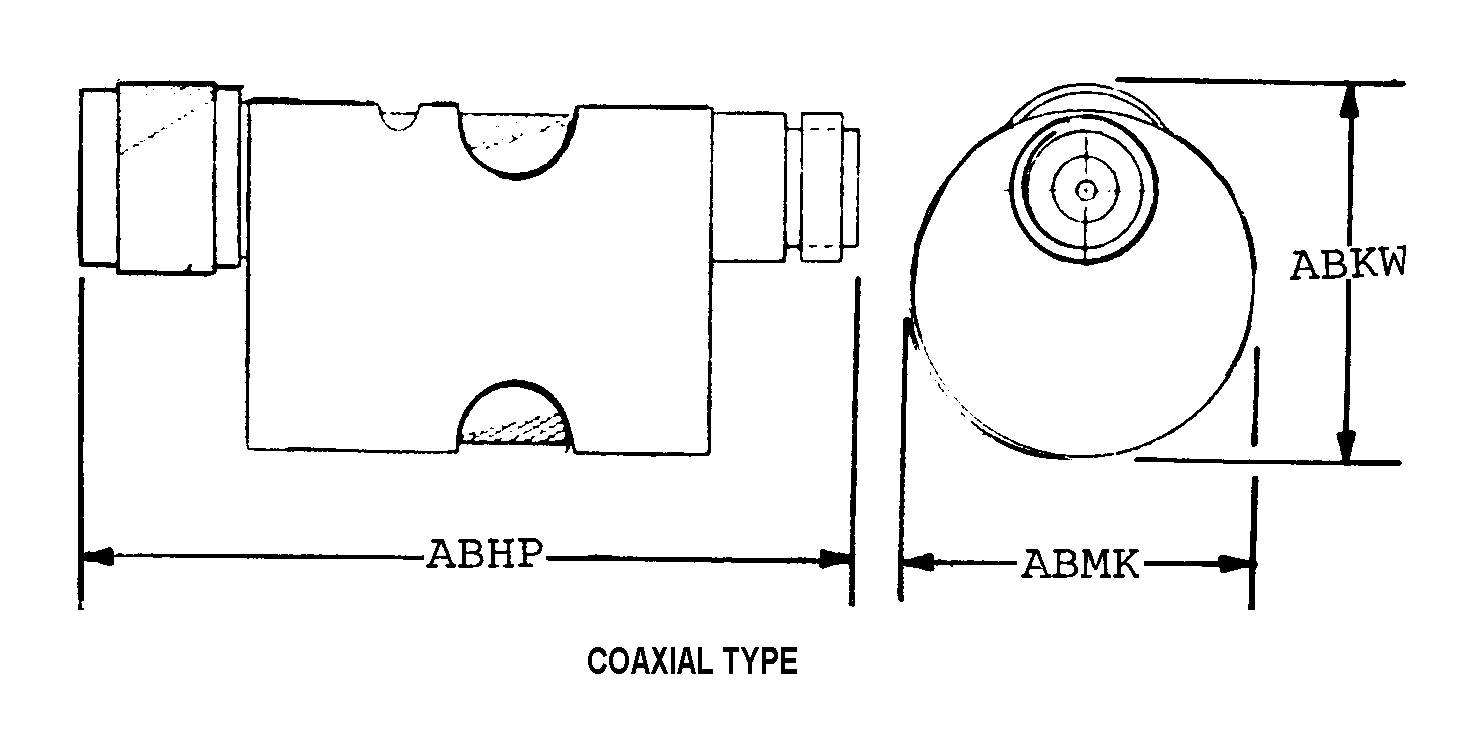

COAXIAL TYPE
Cross Reference | NSN 5985-00-084-4125
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7226560P1 | 24446 | GENERAL ELECTRIC COMPANY |
| 7226560P1 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
| AV90N | 00929 | MICROLAB/FXR |
| 9747371-6 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5985-00-084-4125
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| FREQUENCY RANGE | 0.000 GIGAHERTZ MINIMUM AND 1.500 GIGAHERTZ MAXIMUM |
| IMPEDANCE RATING IN OHMS | 50.0 INPUT-OUTPUT |
| VOLTAGE STANDING WAVE RATIO | 1.35 |
| POWER RATING | 2.0 WATTS AVERAGE AND 1.0 KILOWATTS PEAK |
| OVERALL ATTENUATION RANGE IN DECIBELS | P0.0/P30.0 |
| ATTENUATION VARIATION METHOD | STEPPED |
| STEP POSITION QUANTITY | 30 |
| ATTENUATION PER STEP IN DECIBELS | 1.0 |
| BODY STYLE | COAXIAL TYPE |
| OVERALL LENGTH | 4.200 INCHES NOMINAL |
| OVERALL HEIGHT | 1.130 INCHES NOMINAL |
| OVERALL WIDTH | 1.130 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 SLOTTED SCREW |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, COAXIAL, MALE AND 1 CONNECTOR, COAXIAL, FEMALE |
| COAXIAL CONNECTOR SERIES DESIGNATION | J$J |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 CONNECTOR |
| OPERATING TEMP RANGE | -55.0 TO +125.0 DEG CELSIUS |
