NSN 5985-00-071-1401

Part Details | ELECTRICAL DUMMY LOAD

5985-00-071-1401 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.

Alternate Parts: 82C, 5985-00-071-1401, 00-071-1401, 5985000711401, 000711401

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196100-071-140100335 ( DUMMY LOAD, ELECTRICAL )
REFERENCE DRAWINGS & PICTURES

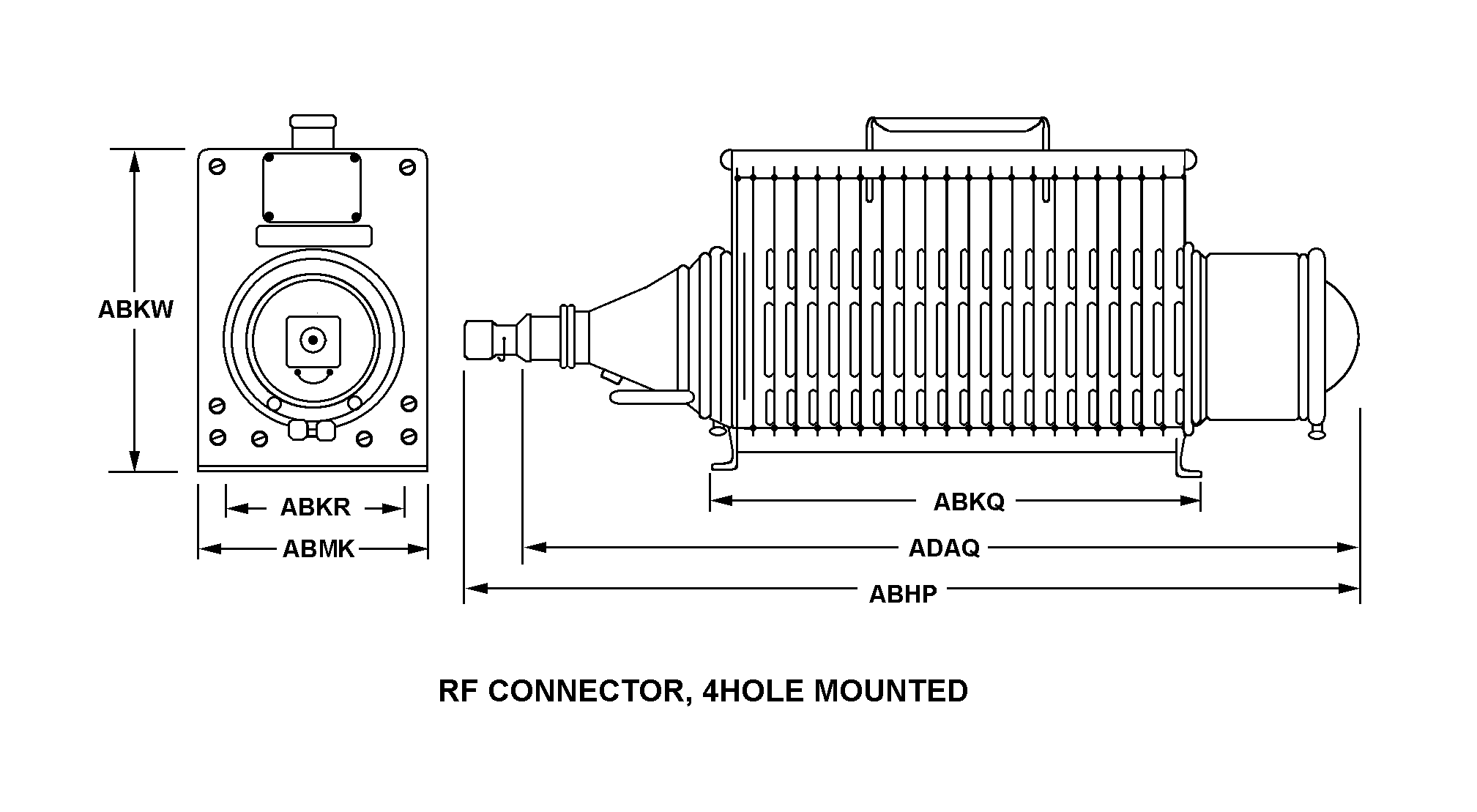

RF CONNECTOR, 4 HOLE MOUNTED

DUMMY LOAD,ELECTRIC | 5985-00-071-1401, 000711401
Cross Reference | NSN 5985-00-071-1401
Part Number Cage Code Manufacturer
82C70998BIRD ELECTRONIC CORPORATIONDIV BIRD ELECTRONIC CORP
Technical Data | NSN 5985-00-071-1401
Characteristic Specifications
STYLE DESIGNATOR RF CONNECTOR, 4 HOLE MOUNTED
OVERALL LENGTH16.875 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH5.125 INCHES NOMINAL
OVERALL HEIGHT8.500 INCHES NOMINAL
OVERALL WIDTH5.937 INCHES NOMINAL
BODY LENGTH12.531 INCHES NOMINAL
FREQUENCY RANGE RATING+0.000 TO +2.500 HERTZ
POWER RATING500.000 WATTS AVERAGE AND 2.500 KILOWATTS PEAK
IMPEDANCE RATING IN OHMS50.0 NOMINAL
VOLTAGE STANDING WAVE RATIOB1.10$$B1.25
VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE+0.000 TO +1.000 GIGAHERTZ AND +1.000 TO +2.500 GIGAHERTZ
TERMINATION TYPE CONNECTION COAXIAL
COAXIAL CONNECTOR SERIES DESIGNATION N
CONNECTOR END DESIGN FEMALE
COOLING METHOD SELF-COOLED
OPERATING POSITION HORIZONTAL
